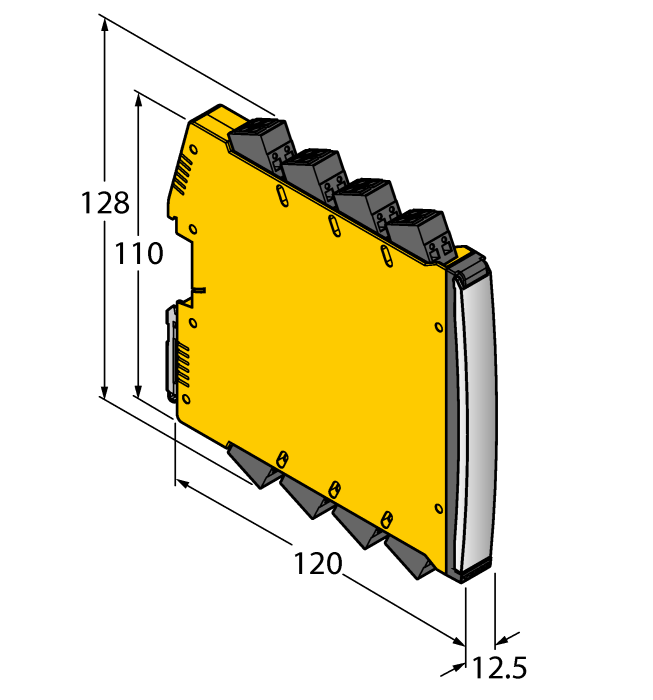

Strain Gauge Processor - 1-channel
SKU: IMX12-SG10-1U-1UI-0/24VDC/CC
Analog signal isolator - Input field side · Analog input · 1 · 24 VDC · ATEX
$334.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Strain Gauge Processor — 1-channel
- Input circuits monitored for wire break and short circuit
- Complete galvanic isolation
- Input for 4-wire DMS bridges
- Output as a repeater with external power supply
- Output as an active or passive current output
- Output as a voltage output
- Removable spring type terminals
- ATEX, IECEx, cUL
- Installation in zone 2
The Turck Strain Gauge Processor - 1-channel # IMX12-SG10-1U-1UI-0/24VDC/CC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101513394 |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 159 g |
| Signal type | Analog input |
| Device type | Analog signal isolator - Input field side |
| Ex version | yes |
| Approvals | ATEX |
| Nominal voltage | 24 VDC |
| Number of channels | 1 |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
