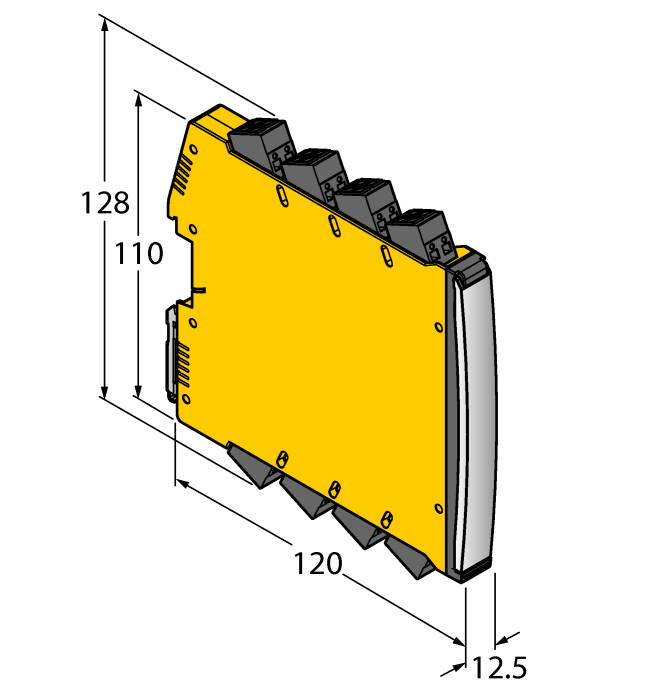

Frequency Transducer/Pulse Counter - 2-channel
SKU: IMX12-FI01-2SF-2I-C0/24VDC/CC
Rotation speed monitor · Frequency input · 2 · 24 VDC · ATEX
$571.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Frequency Transducer/Pulse Counter — 2-channel
- Input circuits monitored for wire-break and short-circuit
- Parameterized via PC
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable spring type terminals
- ATEX, IECEx, cFM, cUL, NEPSI, INMETRO, Kosha, TIIS,
- Use in Zone 2
- SIL 2
The Turck Frequency Transducer/Pulse Counter - 2-channel # IMX12-FI01-2SF-2I-C0/24VDC/CC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101310801 |
| eCl@ss-Code (V5.1.4) | 27230220 -/- Rotation speed monitor |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 155 g |
| Signal type | Frequency input |
| Device type | Rotation speed monitor |
| Ex version | yes |
| Approvals | ATEX |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 2 |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
