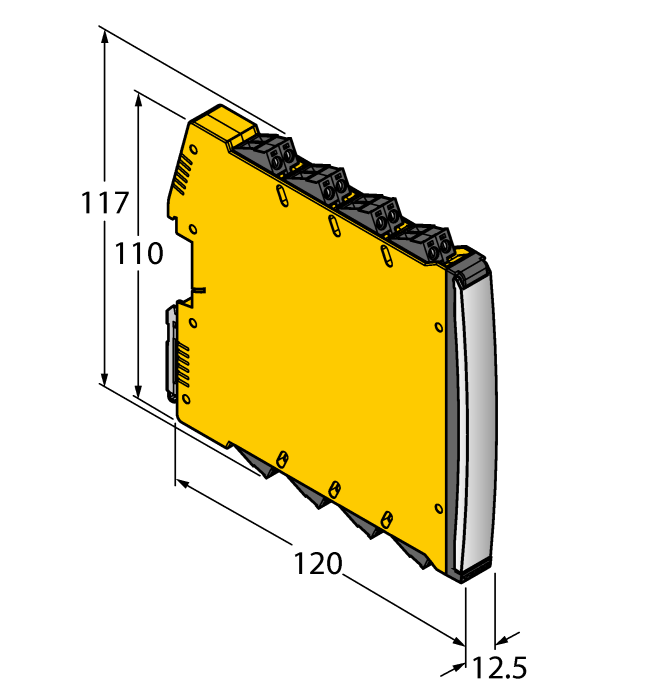

Coupling Relay - 2-channel
SKU: IMX12-CD01-2R-2U-0/L
Relay coupler · Digital output · 2 · 24 VDC · IECEx
$176.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Coupling Relay — 2-channel
- The inputs are not polarized
- With input E1 and input E2, the associated output switches separately
- NE load connection: SIL 3 Safety Function for NE (Normally Energized) load (de-energized in safe state) is available
- ND load connection: SIL 3 Safety Function for ND (Normally De-Energized) load (energized in safe state) is available
- The device is available in a two-channel design for SIL 2 applications
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable screw terminals
- ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha
- Use in Zone 2
- SIL 3
The Turck Coupling Relay - 2-channel # IMX12-CD01-2R-2U-0/L is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101388541 |
| eCl@ss-Code (V5.1.4) | 27049002 -/- DC supply |
| Customs tariff number | 8505191000 |
| Country of origin | CN |
| Weight | 173 g |
| Signal type | Digital output |
| Device type | Relay coupler |
| Ex version | yes |
| Approvals | IECEx |
| Functional safety (SIL/PL) | SIL3 |
| Nominal voltage | 24 VDC |
| Number of channels | 2 |
| Digital output | Current/voltage-limited signal |
| Electrical connection | Removable screw terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
