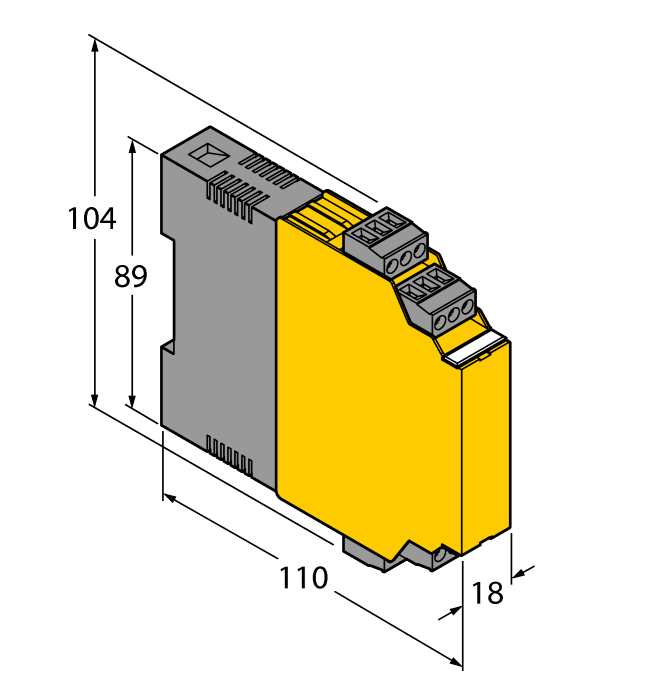

Relay coupler - 2-channel
SKU: IM73-22EX-R/24VUC
Relay coupler · Digital output · 2 · 24 VUC · ATEX, TR CU
$230.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Relay coupler — 2-channel
- Relay coupler for switching of intrinsically safe and current limited circuits
- High-quality reed relays with rhodium contacts
- Switching frequency up to 50 Hz
- Galvanic isolation between input and output circuits
- ATEX, TR CU
- Installation in zone 2
The Turck Relay coupler - 2-channel # IM73-22EX-R/24VUC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101207057 |
| eCl@ss-Code (V5.1.4) | 27210120 -/- Input/output isolator |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 129 g |
| Signal type | Digital output |
| Device type | Relay coupler |
| Ex version | yes |
| Approvals | ATEX, TR CU |
| Nominal voltage | 24 VUC |
| Number of channels | 2 |
| Digital output | Relay output |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
