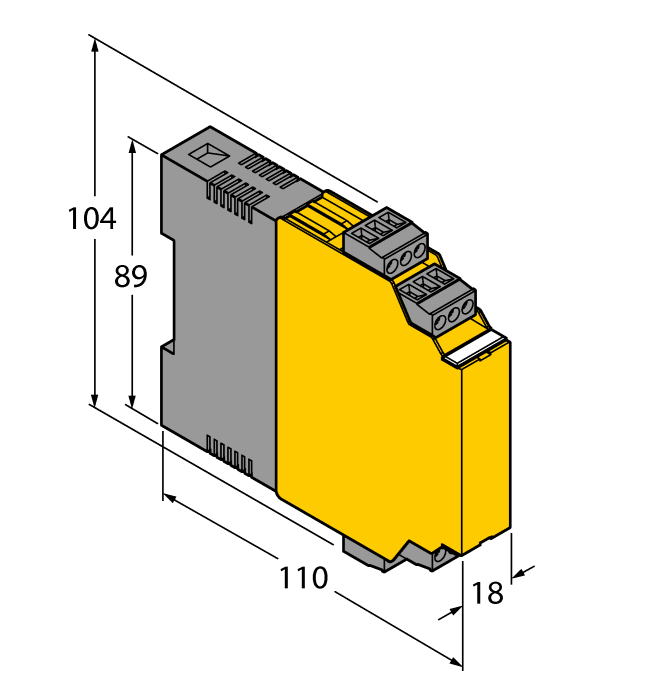

Relay coupler - 1-channel
SKU: IM73-12-R/24VUC
Relay coupler · Digital output · 1 · 24 VUC · TR CU
$154.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Relay coupler — 1-channel
- Output circuit: 2 relays each with 1 changeover contact
- 5 A switching current at 250 VAC
- Operating voltage 19…29 VDC
- Removable terminal blocks
- SIL3
- Galvanic isolation between input circuits and output circuits
- TR CU
The Turck Relay coupler - 1-channel # IM73-12-R/24VUC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101118278 |
| eCl@ss-Code (V5.1.4) | 27210120 -/- Input/output isolator |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 124 g |
| Signal type | Digital output |
| Device type | Relay coupler |
| Ex version | no |
| Approvals | TR CU |
| Functional safety (SIL/PL) | SIL3 |
| Nominal voltage | 24 VUC |
| Number of channels | 1 |
| Digital output | Relay output |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
