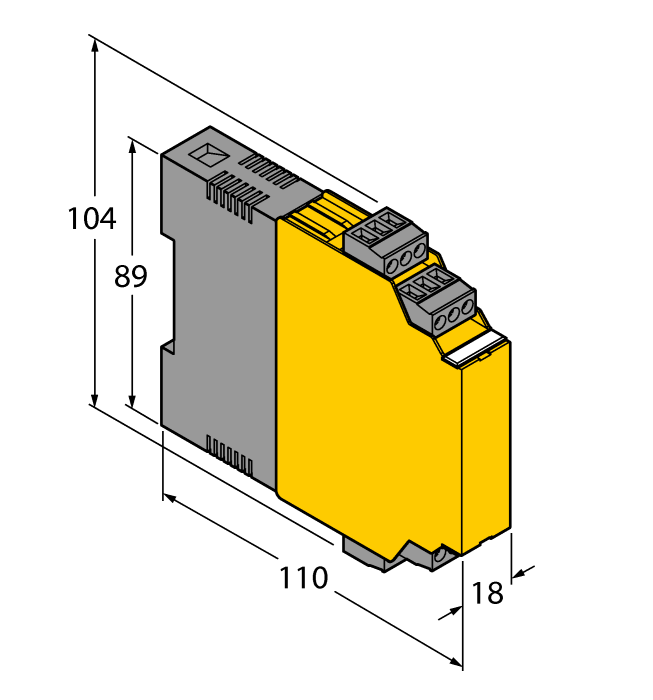

Solenoid Driver - 2-channel
SKU: IM72-22EX/L
Solenoid driver · Digital output · 2 · Loop-powered · ATEX, IECEx, UL, cFMus, TR CU, NEPSI, INMETRO
$458.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Solenoid Driver — 2-channel
- Voltage input max. 30 VDC
- Voltage outuput 15 VDC resp. 24 VDC
- Output current ≤ 40 mA
- Switching frequency ≤ 500 Hz
- SIL3
- Removable terminal blocks
- Galvanic isolation between input and output circuits
- ATEX, IECEx, UL, CFMUS TR CU,NEPSI, INMETRO, Kosha
- Installation in zone 2
The Turck Solenoid Driver - 2-channel # IM72-22EX/L is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101118230 |
| eCl@ss-Code (V5.1.4) | 27049002 -/- DC supply |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 148 g |
| Signal type | Digital output |
| Device type | Solenoid driver |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, TR CU, NEPSI, INMETRO |
| Functional safety (SIL/PL) | SIL3 |
| Nominal voltage | Loop-powered |
| Number of channels | 2 |
| Digital output | Current/voltage-limited signal |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
