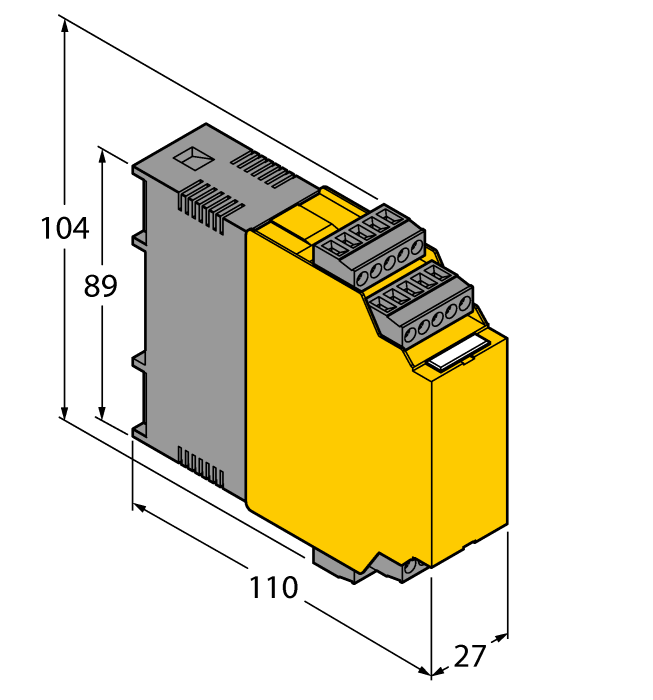

Isolating transducer - 1-channel
SKU: IM43-14-CDRI
Trip amplifier · Analog input · 1 · Wide voltage range · TR CU
$931.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating transducer — 1-channel
- Input circuit: 0/4…20 mA; 0/2…10 V
- Output circuit: 0/4…20 mA, 3 independent limit value relays
- Universal operating voltage
- Monitors over and underrange of analog values and window limits
- Connection of passive 2-wire and active 3-wire transmitters
- Parameterized via PC (FDT / DTM), front-panel switch and HART
- Many diagnostic functions
- Ring buffer for up to 8000 measured values
- Display
- Complete galvanic isolation
- Input reverse-polarity protected
- TR CU
The Turck Isolating transducer - 1-channel # IM43-14-CDRI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101119138 |
| eCl@ss-Code (V5.1.4) | 27210119 -/- Isolating transducer |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 245 g |
| Signal type | Analog input |
| Device type | Trip amplifier |
| Ex version | no |
| Approvals | TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Digital output | Relay output |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
