Potentiometer Amplifier - 2-channel
SKU: IM36-22EX-I
Potentiometer · Resistance input · 2 · Wide voltage range · ATEX, IECEx, TR CU
$752.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

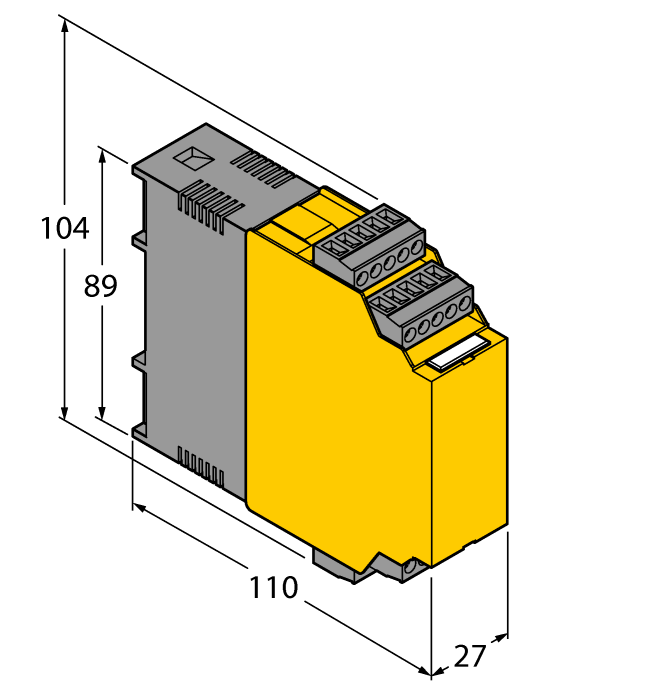

Potentiometer Amplifier — 2-channel
- Transmission of potentiometer signals from the Ex area
- Potentiometer, nominal resistance: 0.8…100 kΩ
- Output circuit: 0/4…20 mA
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, TR CU, KOSHA
- Installation in zone 2
The Turck Potentiometer Amplifier - 2-channel # IM36-22EX-I is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101118018 |
| eCl@ss-Code (V5.1.4) | 27210120 -/- Input/output isolator |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 202 g |
| Signal type | Resistance input |
| Device type | Potentiometer |
| Ex version | yes |
| Approvals | ATEX, IECEx, TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 2 |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
