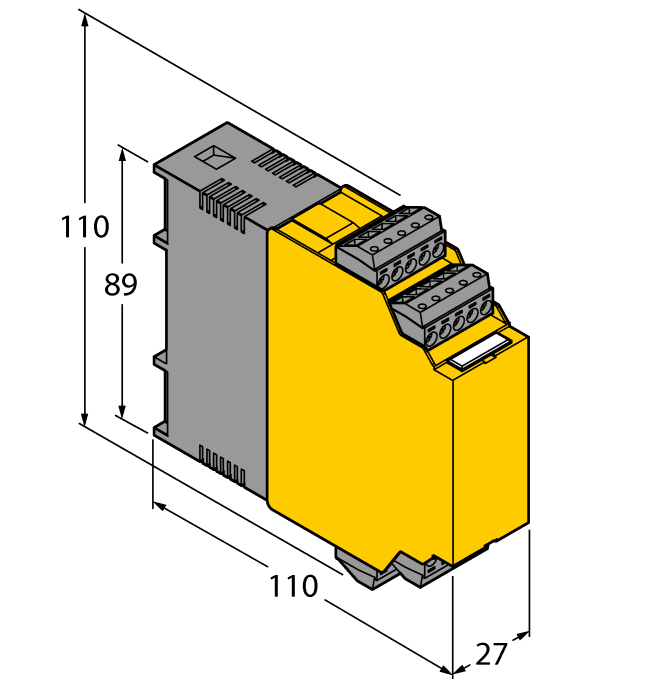

Analog Signal Isolator - 1-channel
SKU: IM35-11EX-HI
Analog signal isolator - Output field side · Analog output (HART transparent) · 1 · Wide voltage range · ATEX, TR CU
$532.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Analog Signal Isolator — 1-channel
- Intelligent actuators supplied via HART communication interface
- Input circuit: 0/4…20 mA
- Output circuit: 0/4…20 mA, intrinsically safe
- Universal operating voltage
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, TR CU, NEPSI
- Installation in zone 2
The Turck Analog Signal Isolator - 1-channel # IM35-11EX-HI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101117295 |
| eCl@ss-Code (V5.1.4) | 27210107 -/- Transducer (universal) |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 194 g |
| Signal type | Analog output (HART transparent) |
| Device type | Analog signal isolator - Output field side |
| Ex version | yes |
| Approvals | ATEX, TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Electrical connection | 4 × 5-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
