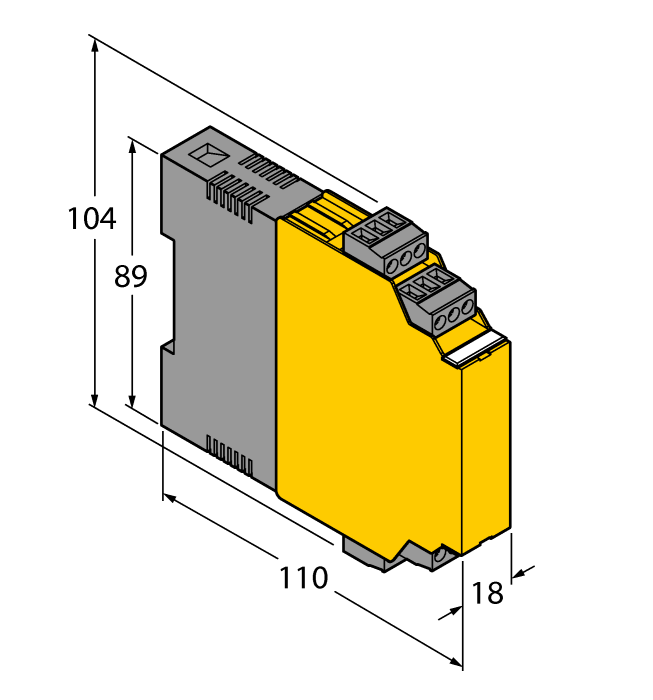

Temperature measuring amplifier - 1-channel
SKU: IM34-11EX-CI
Temperature measuring amplifier · Temperature input · 1 · Wide voltage range · ATEX, IECEx, UL, cFMus, TR CU, INMETRO, CCOE
$668.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature measuring amplifier — 1-channel
- Input for Pt100/ Ni100 resistors, thermocouples and millivolt signals in 2, 3 or 4-wire technology
- Output circuit: 0/4…20 mA
- Parameterized via PC (FDT / DTM)
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, CFMUS, UL, TR CU, INMETRO, CCOE, NEPSI, KOSHA
- Installation in zone 2
The Turck Temperature measuring amplifier - 1-channel # IM34-11EX-CI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101117417 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 158 g |
| Signal type | Temperature input |
| Device type | Temperature measuring amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, TR CU, INMETRO, CCOE |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
