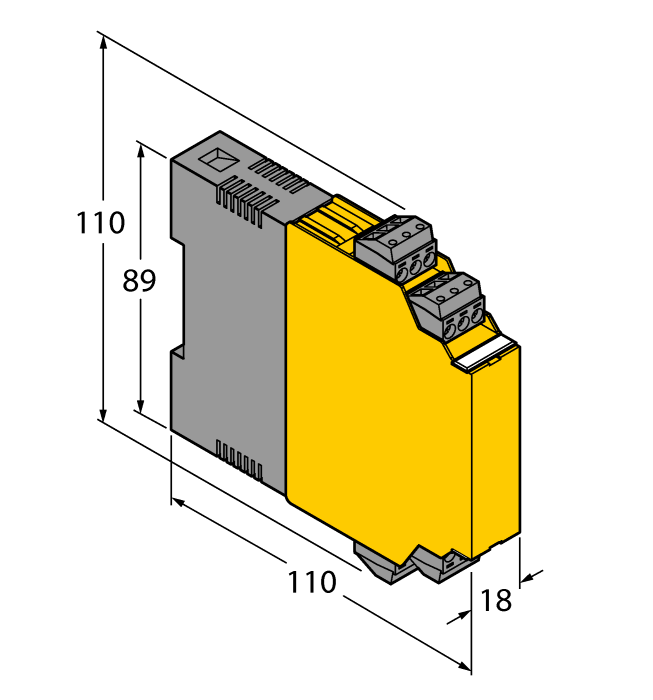

Isolating transducer for fire and smoke detectors - 2-channel
SKU: IM33-FSD-EX/L
Isolating transducer · Analog input · 2 · Wide voltage range · ATEX, cFMus, TR CU
$454.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating transducer for fire and smoke detectors — 2-channel
- Isolating transducer without auxiliary power
- Power supply for fire and smoke detectors
- Signal transmission: 0…40 mA
- Removable terminal blocks, screwable, with 2 mm test box
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, CFMUS
The Turck Isolating transducer for fire and smoke detectors - 2-channel # IM33-FSD-EX/L is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101117080 |
| eCl@ss-Code (V5.1.4) | 27210119 -/- Isolating transducer |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 144 g |
| Signal type | Analog input |
| Device type | Isolating transducer |
| Ex version | yes |
| Approvals | ATEX, cFMus, TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 2 |
| Electrical connection | 4 × 3-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
