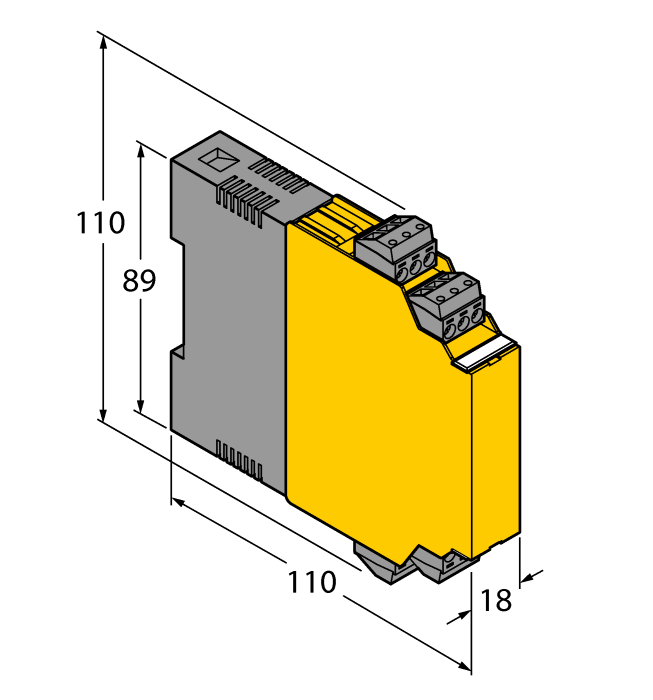

Isolating transducer - 2-channel
SKU: IM33-22EX-HI/24VDC
Isolating transducer · Analog input (HART transparent) · 2 · 24 VDC · ATEX, IECEx, UL, cFMus, TR CU, TIIS, CCOE
$710.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating transducer — 2-channel
- Power supply of 2-wire measuring transducers with HART communication as well as connection to active 2-wire and passive 3-wire transmitters
- Input circuits: 0/4…20 mA
- Output circuits: 0/4…20 mA
- SIL2
- Removable terminal blocks, screwable, with 2 mm test socket
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, UL, CFMUS, TR CU, CCOE, Kosha
- Installation in zone 2
The Turck Isolating transducer - 2-channel # IM33-22EX-HI/24VDC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101117141 |
| eCl@ss-Code (V5.1.4) | 27210119 -/- Isolating transducer |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 197 g |
| Signal type | Analog input (HART transparent) |
| Device type | Isolating transducer |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, TR CU, TIIS, CCOE |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 2 |
| Electrical connection | 4 × 3-pin removable terminal blocks with test socket, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
