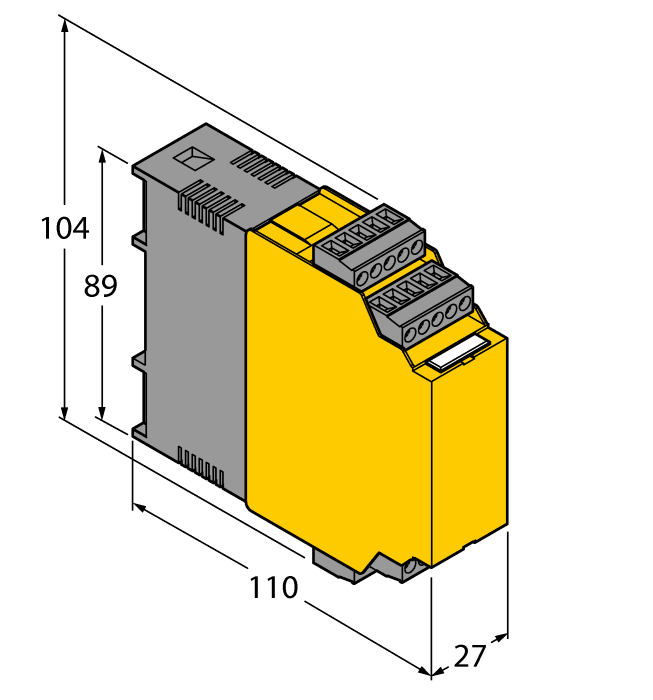

Isolating transducer - 1-channel
SKU: IM33-14EX-CDRI
Trip amplifier · Analog input (HART transparent) · 1 · Wide voltage range · ATEX, IECEx, TR CU
$963.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating transducer — 1-channel
- Monitoring of analog values and ranges according to over and underrange
- Line monitoring
- Parameterized via PC (FDT/DTM), front-panel switch or HART
- Ring buffer for up to 8000 measured values
- Display
- Power supply of 2 and 3-wire measuring transducers
- Suited for active and passive signals
- Output circuit: 0/4…20 mA, reversible
- 3 relay outputs
- Universal operating voltage
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, TR CU, KOSHA
- Installation in zone 2
The Turck Isolating transducer - 1-channel # IM33-14EX-CDRI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101120905 |
| eCl@ss-Code (V5.1.4) | 27210119 -/- Isolating transducer |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 249 g |
| Signal type | Analog input (HART transparent) |
| Device type | Trip amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Digital output | Relay output |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
