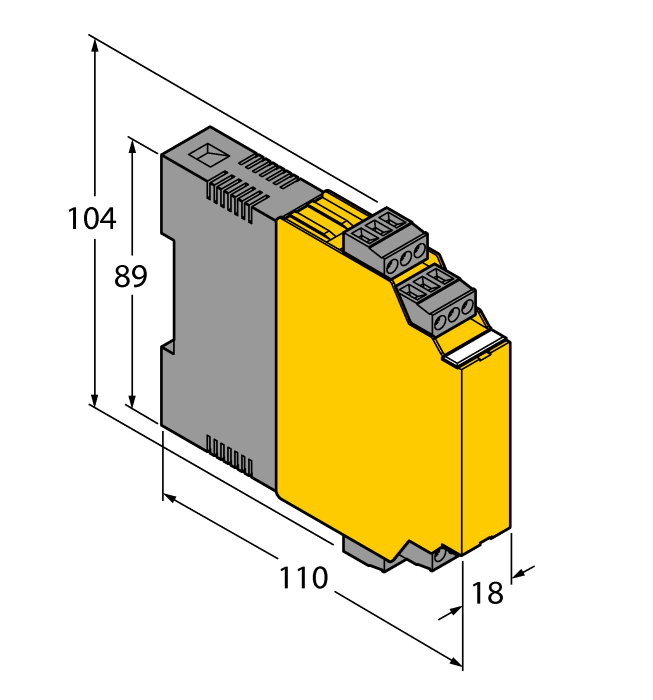

Analog signal isolator - 2-channel
SKU: IM31-22-I
Analog signal isolator - Input field side · Analog input · 2 · Wide voltage range · TR CU
$539.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Analog signal isolator — 2-channel
- Transmission of normalized analog signals
- Input circuit: 2 × 0/2…10 V or 0/4…20 mA
- Output circuit: 2 × 0/4 0…20 mA
- Complete galvanic isolation
- Input reverse-polarity protected
- TR CU
The Turck Analog signal isolator - 2-channel # IM31-22-I is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101116939 |
| eCl@ss-Code (V5.1.4) | 27210107 -/- Transducer (universal) |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 140 g |
| Signal type | Analog input |
| Device type | Analog signal isolator - Input field side |
| Ex version | no |
| Approvals | TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 2 |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
