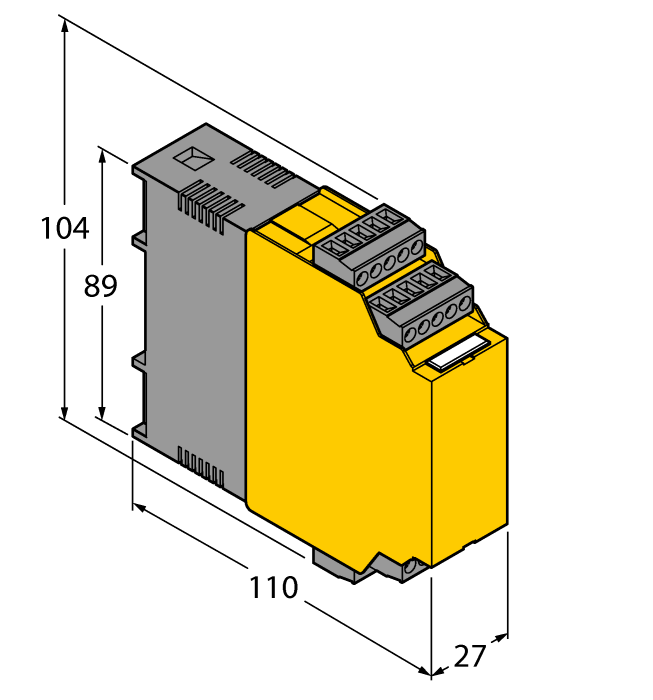

Rotation speed monitor - 1-channel
SKU: IM21-14EX-CDTRI
Rotation speed monitor · Frequency input · 1 · Wide voltage range · ATEX, IECEx, cFMus, TR CU, NEPSI, TIIS
$932.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Rotation speed monitor — 1-channel
- Monitoring of limit values and ranges according to over and underrange
- Operating range 0.06…600,000 min-1
- Pulse output Ex [ic Gc] II C/II B
- Parameterized via PC (FDT/DTM), front-panel switch or HART
- Ring buffer for up to 8000 measured values
- Display
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, CFMUS, TR CU, NEPSI, TIIS, Kosha
- Installation in zone 2
The Turck Rotation speed monitor - 1-channel # IM21-14EX-CDTRI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101116427 |
| eCl@ss-Code (V5.1.4) | 27230220 -/- Rotation speed monitor |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 249 g |
| Signal type | Frequency input |
| Device type | Rotation speed monitor |
| Ex version | yes |
| Approvals | ATEX, IECEx, cFMus, TR CU, NEPSI, TIIS |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Digital output | Relay and transistor output |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
