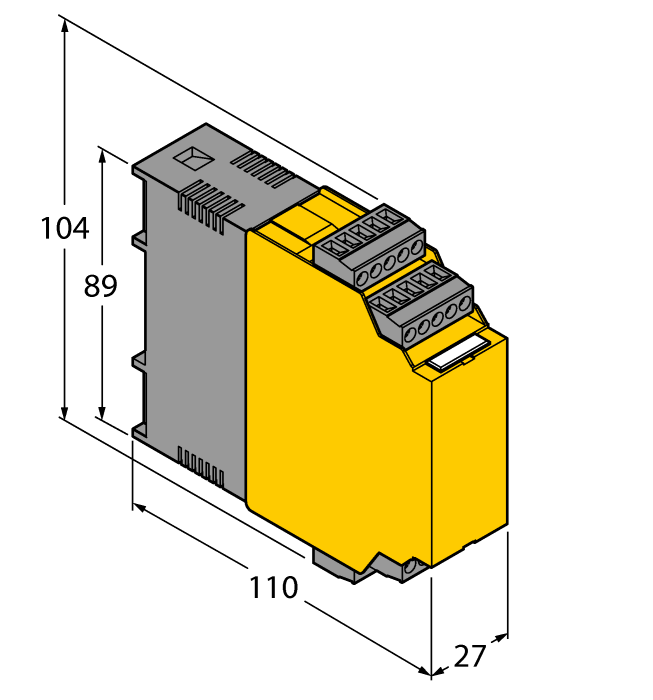

Rotation speed monitor - 1-channel
SKU: IM21-14-CDTRI
Rotation speed monitor · Frequency input · 1 · Wide voltage range · TR CU
$896.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Rotation speed monitor — 1-channel
- Monitoring of limit values and ranges according to over/underrange
- Operating range 0.06 … 600000 min-1
- Connection of sensors acc. to EN 60947‐5‐6 (NAMUR), 3-wire sensors and external power supplies
- Pulse output
- Parameterized via PC (FDT/DTM), front-panel switch and HART
- Ring buffer for up to 8000 measured values
- Display
- Complete galvanic isolation
- Input reverse-polarity protected
- TR CU
The Turck Rotation speed monitor - 1-channel # IM21-14-CDTRI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101116410 |
| eCl@ss-Code (V5.1.4) | 27230220 -/- Rotation speed monitor |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 247 g |
| Signal type | Frequency input |
| Device type | Rotation speed monitor |
| Ex version | no |
| Approvals | TR CU |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Digital output | Relay and transistor output |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
