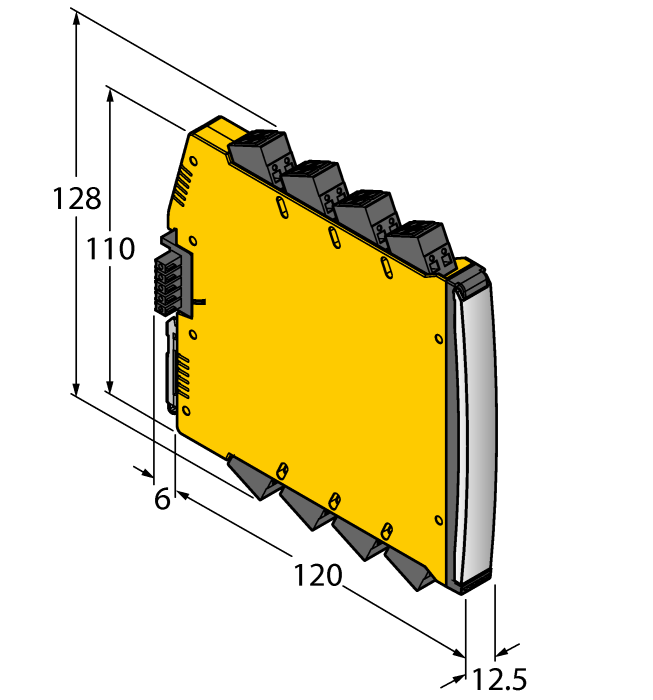

Temperature measuring amplifier - 1-channel
SKU: IM12-TI02-1TCURTDR-1I1R-CPR/24VDC/CC
Temperature measuring amplifier · Temperature input · 1 · Power bridge 24 VDC · cULus
$477.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature measuring amplifier — 1-channel
- Input circuits monitored for wire break and short circuit
- Parameterized via PC
- Complete galvanic isolation
- Removable spring type terminals
- Power bridge (connector incl. in delivery)
- ATEX use in Zone 2, cUL
- SIL 2
The Turck Temperature measuring amplifier - 1-channel # IM12-TI02-1TCURTDR-1I1R-CPR/24VDC/CC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101421361 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 1.1 g |
| Signal type | Temperature input |
| Device type | Temperature measuring amplifier |
| Ex version | no |
| Approvals | cULus |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 1 |
| Digital output | Relay output |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
