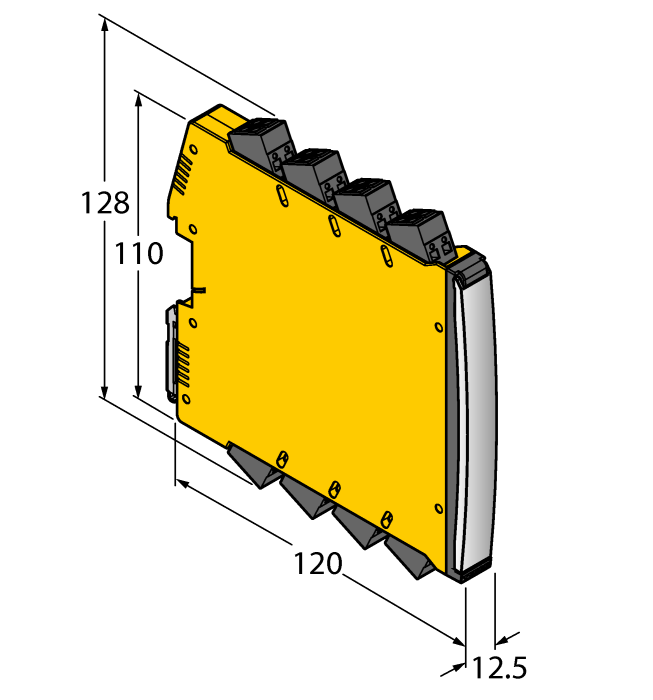

Temperature measuring amplifier - 1-channel
SKU: IM12-TI02-1TCURTDR-1I-0/24VDC/CC
Temperature measuring amplifier · Temperature input · 1 · 24 VDC · cULus
$467.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature measuring amplifier — 1-channel
- Input for thermocouples, low voltages (-150…+150 mV), RTDs (2-, 3- and 4-wire) and 0…5 kΩ resistors (2-, 3- and 4-wire)
- Current output 0/4…20 mA either as source or sink
- Adjustable measuring range
- Configuration via rotary coding switches and DIP switches
- Wire-break monitoring of input and output circuits
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable spring type terminals
- Use in Zone 2
- SIL 2
The Turck Temperature measuring amplifier - 1-channel # IM12-TI02-1TCURTDR-1I-0/24VDC/CC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101421385 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 1.1 g |
| Signal type | Temperature input |
| Device type | Temperature measuring amplifier |
| Ex version | no |
| Approvals | cULus |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 1 |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
