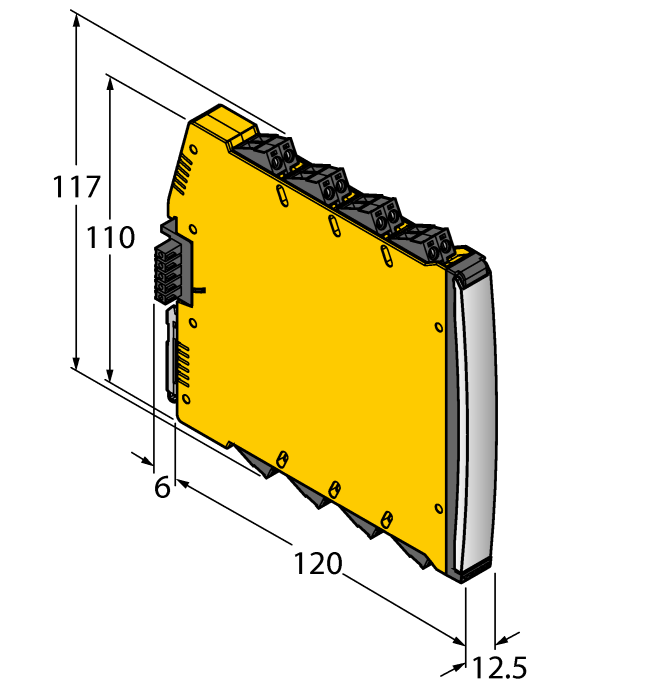

Frequency Transducer/Pulse Counter - 2-channel
SKU: IM12-FI01-2SF-2I-CPR/24VDC
Rotation speed monitor · Frequency input · 2 · Power bridge 24 VDC · cULus
$585.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Frequency Transducer/Pulse Counter — 2-channel
- Input circuits monitored for wire-break and short-circuit
- Parameterized via PC
- Complete galvanic isolation
- Removable screw terminals
- Power bridge (connector incl. in delivery)
- ATEX use in Zone 2, cUL
- SIL 2
The Turck Frequency Transducer/Pulse Counter - 2-channel # IM12-FI01-2SF-2I-CPR/24VDC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101420463 |
| eCl@ss-Code (V5.1.4) | 27230220 -/- Rotation speed monitor |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 173 g |
| Signal type | Frequency input |
| Device type | Rotation speed monitor |
| Ex version | no |
| Approvals | cULus |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 2 |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable screw terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
