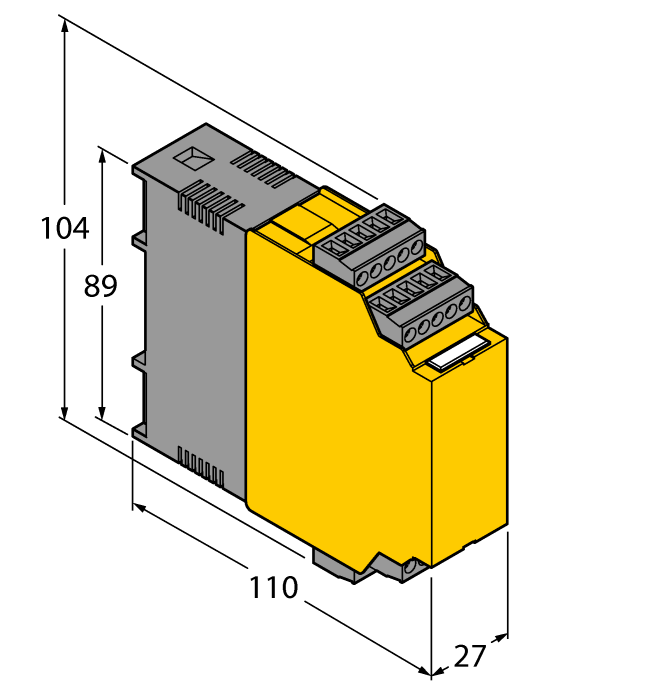

Isolating switching amplifier - 4-channel
SKU: IM1-451EX-T
Isolating switching amplifier · Digital input · 4 · Wide voltage range · ATEX, IECEx, UL, cFMus, CSA, TR CU, INMETRO, TIIS
$692.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating switching amplifier — 4-channel
- 5 transistor outputs, short-circuit proof, potential-free and reverse-polarity protected
- Output mode adjustable (NO/NC mode)
- Input circuits monitored for wire-break/short-circuit (ON/OFF switchable)
- Common alarm output
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, UL, CFMUS, CSA, TR CU, INMETRO, TIIS, NEPSI
- Installation in zone 2
The Turck Isolating switching amplifier - 4-channel # IM1-451EX-T is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101119404 |
| eCl@ss-Code (V5.1.4) | 27210121 -/- Isolating switching amplifier |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 192 g |
| Signal type | Digital input |
| Device type | Isolating switching amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, CSA, TR CU, INMETRO, TIIS |
| Nominal voltage | Wide voltage range |
| Number of channels | 4 |
| Digital output | Transistor output |
| Electrical connection | 4 × 5-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
