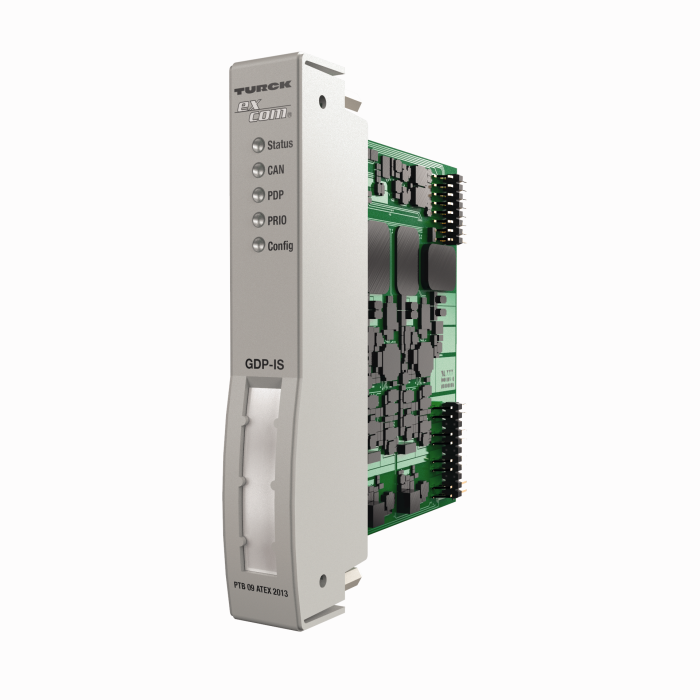

excom I/O System - PROFIBUS-DP Interface
SKU: GDP-IS/FW2.3
Gateway · Screw terminal, Cage clamp terminal · ATEX, cFMus, cFM, IECEx, CCC, KOSHA, EAC Ex, DNV GL, BV, LR, KR, KCC, UKCA, CE
$906.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
excom I/O System — PROFIBUS-DP Interface
- Intrinsically safe gateway for PROFIBUS-DPV1
- Connection of the excom station to the PROFIBUS
- Baud rate max. 1.5 Mbps
- PROFIBUS interface acc. to PROFIBUS user organization (PNO) with RS485-IS layer
The Turck excom I/O System - PROFIBUS-DP Interface # GDP-IS/FW2.3 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101350036 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 114 g |
| Fieldbus Protocol | PROFIBUS-DP |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Gateway |
| Fieldbus transmission rate | 9.6 kbps …1.5 Mbps |
| Ambient temperature | -20…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, KOSHA, EAC Ex, DNV GL, BV, LR, KR, KCC, UKCA, CE |
