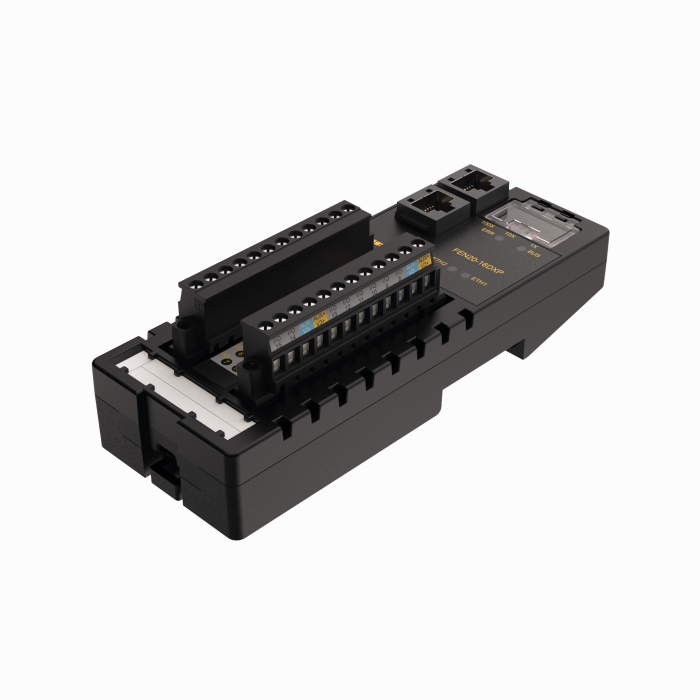

Compact IP20 Multiprotocol Ethernet I/O Station - 16 Configurable Digital PNP Channels
SKU: FEN20-16DXP
I/O Module, Compact station, Field Logic Controller (ARGEE) · Digital input/output, Digital output, Digital input · Screw terminal · cULus
$530.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Compact IP20 Multiprotocol Ethernet I/O Station — 16 Configurable Digital PNP Channels
- FLC/ARGEE programmable
- EtherNet/IP Slave
- Modbus TCP Slave
- PROFINET Slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- 2 x RJ45 Sockets for Fieldbus Connection
- DIN rail mount housing
- 3 I/O power supply groups each galvanically separated
- 16 configurable PNP channels, DI or DO
- 24 VDC
- Up to 1 A outputs
- Protection class IP20
The Turck Compact IP20 Multiprotocol Ethernet I/O Station - 16 Configurable Digital PNP Channels # FEN20-16DXP is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101308655 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 262 g |
| Fieldbus Protocol | Modbus TCP, PROFINET, EtherNet/IP |
| Signal type | Digital input/output, Digital output, Digital input |
| Connection technology signal | Screw terminal |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Transmission rate Ethernet | 10/100 Mbps, Full/Half Duplex, Auto Negotiation, Auto Cross |
| Connection technology Ethernet | 2 × RJ45 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | cULus |
