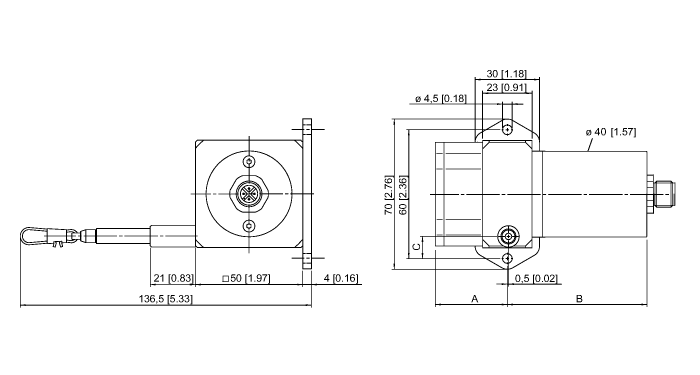

Draw-Wire - Analog
SKU: DW500-70-7E-H1441
500 mm [19.69 in] · Analog output · Connector, M12 × 1
$1,250.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Draw-Wire — Analog
- Measuring range up to 500 mm
- M12 connector
- Measuring principle: potentiometer
- Protection class: IP65 (Encoder)
- Analog output, 4…20 mA
- Supply voltage 12…30 VDC
The Turck Draw-Wire - Analog DW500-70-7E-H1441 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101256796 |
| eCl@ss-Code (V5.1.4) | 27270790 -/- Sensor for length, path (not classified) |
| Customs tariff number | 9031804000 |
| Country of origin | DE |
| Weight | 514 g |
| Design | Draw Wire |
| Measuring range | 500 mm [19.69 in] |
| Operating voltage | 12…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Titanium anodized aluminium |
| Ambient temperature | -20…+60 °C |
| Protection class | IP65 |
