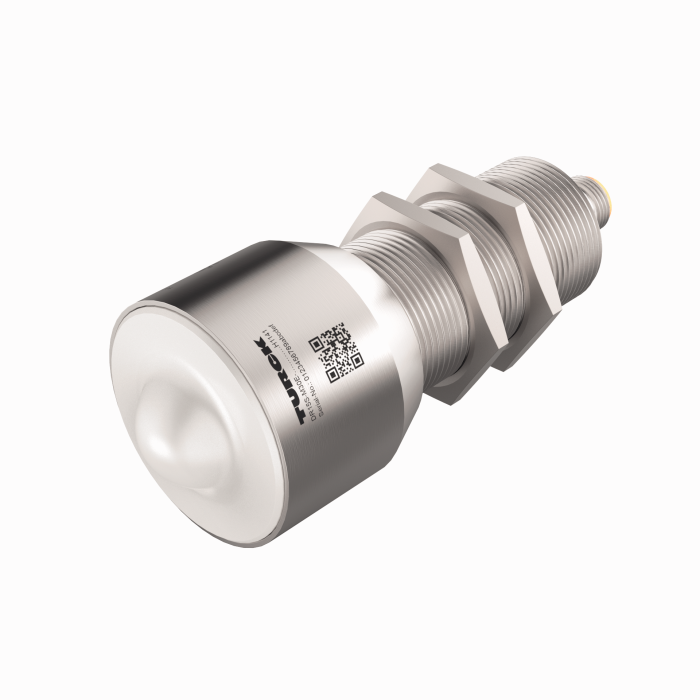

Radar Sensor - Distance/Object Detection
SKU: DR15S-M30E-IOL8X2-H1141
350…15000 mm · M30 x 1.5 · 15° · PNP/NPN, analog output
$845.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Radar Sensor — Distance/Object Detection
- Blind zone: 35 cm
- Range: 15 m
- Resolution: 1 mm
- Cone angle of the radar beam: Standard ±7.5°
- Approved acc. to ETSI 305550-2
- Approved acc. to FCC/CFR 47 Part 15.
- M12 × 1 male connector, 4-pin
- Operating voltage 18…33 VDC
- Operating voltage 10…33 VDC (in SIO mode)
- Switching output switchable between PNP/NPN
- Analog output switchable between 4…20 mA/0…10 V
- Automatic current/voltage detection
- IO-Link
- M30 cylindrical design, stainless steel
The Turck Radar Sensor - Distance/Object Detection # DR15S-M30E-IOL8X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101557312 |
| eCl@ss-Code (V5.1.4) | 27200505 -/- Radar level measurement |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 342 g |
| Function | Radar scanner |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Range | 350…15000 mm |
| Frequency range | 122 - 123 GHz |
| Beam angle | 15° |
| Operating voltage | 18…33 VDC |
| Switching element function | NO/NC programmable |
| Output function | PNP/NPN, analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4401 (AISI 316) PTFE |
| Ambient temperature | -25…+65 °C |
| Protection class | IP67/IP69K |
