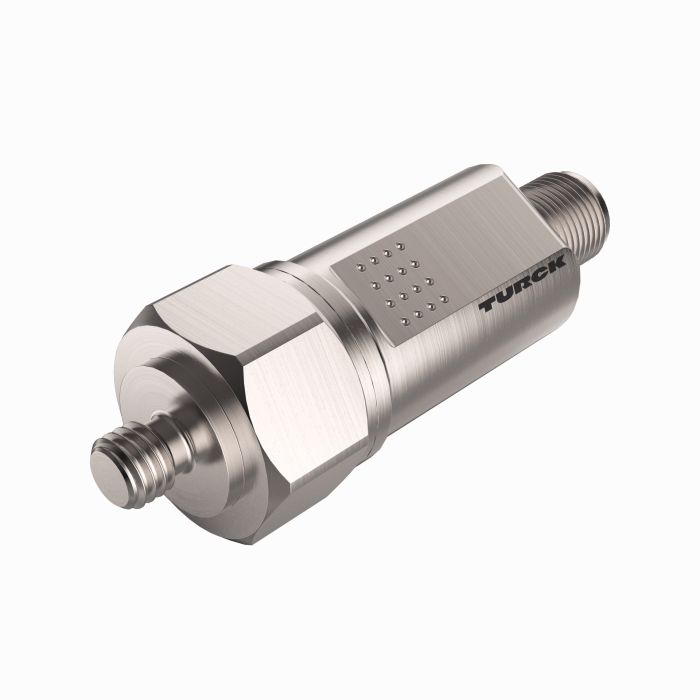

Vibration and Temperature Sensor - For Condition Monitoring with IO-Link and 4…20 mA
SKU: CMVT-M8TA1X-LI2IOL-H1141
Vibration and Temperature Sensor — For Condition Monitoring with IO-Link and 4…20 mA
$633.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Vibration and Temperature Sensor — For Condition Monitoring with IO-Link and 4…20 mA
- Stainless steel housing with M8 screw-in thread
- RMS speed output and RMS acceleration, peak
- RMS measuring range acceleration 10 g, peak 14 g
- Detection over 1 axes
- Frequency ranges configurable
- IO-Link, PNP, 4…20 mA
- Temperature measuring range -40 °C to +80 °C
- High protection class IP66/IP67
- M12 × 1 connector, 4-pin
The Turck Vibration and Temperature Sensor - For Condition Monitoring with IO-Link and 4…20 mA # CMVT-M8TA1X-LI2IOL-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101673708 |
| eCl@ss-Code (V5.1.4) | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 90318080000 |
| Country of origin | DE |
| Weight | 137 g |
| Function | Vibration/temperature sensor |
| Operating voltage | 18…30 VDC |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67 |
