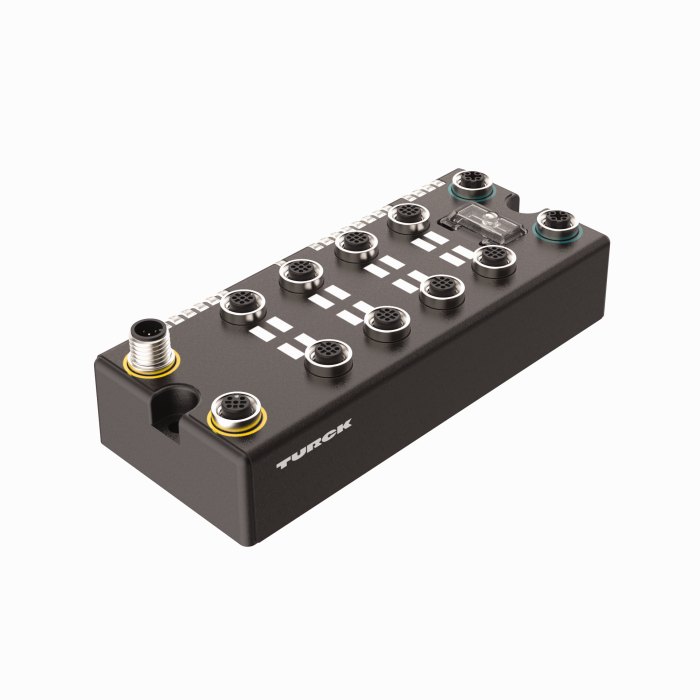

BL compact multiprotocol fieldbus station for Industrial Ethernet - 4 Analog Outputs for Voltage and 8 Configurable Digital PNP Channels
SKU: BLCEN-8M12LT-4AO-V-8XSG-P
I/O Module, Compact station, Field Logic Controller (ARGEE) · Analog output, Digital input/output, Digital input, Digital output · M12
List price. Volume pricing available.
BL compact multiprotocol fieldbus station for Industrial Ethernet — 4 Analog Outputs for Voltage and 8 Configurable Digital PNP Channels
- On-machine Compact fieldbus I/O block
- EtherNet/IP, Modbus TCP, or PROFINET slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- Two 4-pole M12, D-coded, connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 8 Configurable digital PNP channels, 24 VDC
- Max. 0.5A per channel
- Selection of filtering times (Input delay)
- Invertible inputs
- 4 analog voltage outputs
- -10/0…+10 VDC
The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - 4 Analog Outputs for Voltage and 8 Configurable Digital PNP Channels # BLCEN-8M12LT-4AO-V-8XSG-P is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Weight | 594.64 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Signal type | Analog output, Digital input/output, Digital input, Digital output |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
