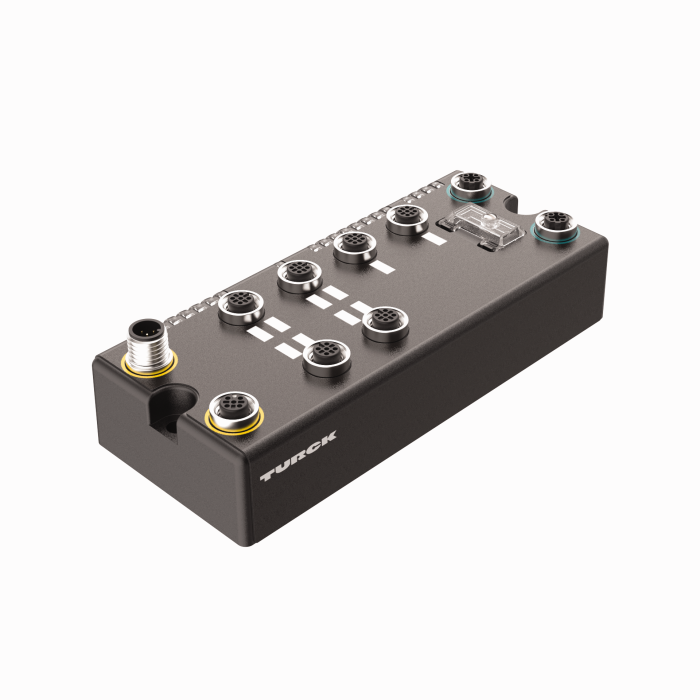

BL compact multiprotocol fieldbus station for Industrial Ethernet - Interface for Connection of 2 BL ident Read/Write Heads (HF/UHF) and 8 Digital NPN Outputs

BL compact multiprotocol fieldbus station for Industrial Ethernet — Interface for Connection of 2 BL ident Read/Write Heads (HF/UHF) and 8 Digital NPN Outputs

• On-machine Compact fieldbus I/O block
• EtherNet/IP, Modbus TCP, or PROFINET slave
• Integrated Ethernet Switch
• 10 Mbps / 100 Mbps supported
• Two 4-pole M12, D-coded, connectors for fieldbus connection
• 2 rotary switches for node address
• IP67, IP69K
• M12 I/O connectors
• LEDs indicating status and diagnostics
• Electronics galvanically separated from the field level via optocouplers
• 8 digital NPN outputs, 24 VDC
• Max. 0.5A per output
• Simple RFID interface
• Connection of 2 BL ident read/write heads
• Max cable length of 50 m

The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - Interface for Connection of 2 BL ident Read/Write Heads (HF/UHF) and 8 Digital NPN Outputs # BLCEN-6M12LT-2RFID-S-8DO-0.5A-N is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
