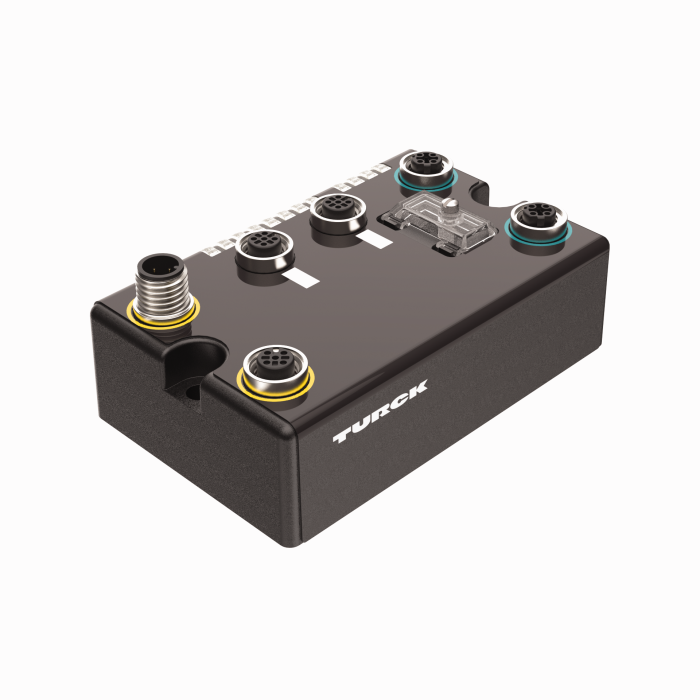

BL compact multiprotocol fieldbus station for Industrial Ethernet - 2 Analaog Inputs for Thermocouple Elements
SKU: BLCEN-2M12MT-2AI-TC
I/O Module, Compact station, Field Logic Controller (ARGEE) · Analog input, Temperature · M12
$811.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
BL compact multiprotocol fieldbus station for Industrial Ethernet — 2 Analaog Inputs for Thermocouple Elements
- On-machine Compact fieldbus I/O block
- EtherNet/IP, Modbus TCP, or PROFINET slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- Two 4-pole M12, D-coded, connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 2 analog inputs for Thermo Couples
- Types B, E, J, K, N, R, S or T (selectable per channel)
- Cold-junction compensation via a Pt1000 in special connector
The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - 2 Analaog Inputs for Thermocouple Elements BLCEN-2M12MT-2AI-TC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101464252 |
| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Country of origin | US |
| Weight | 448.7 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Signal type | Analog input, Temperature |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
