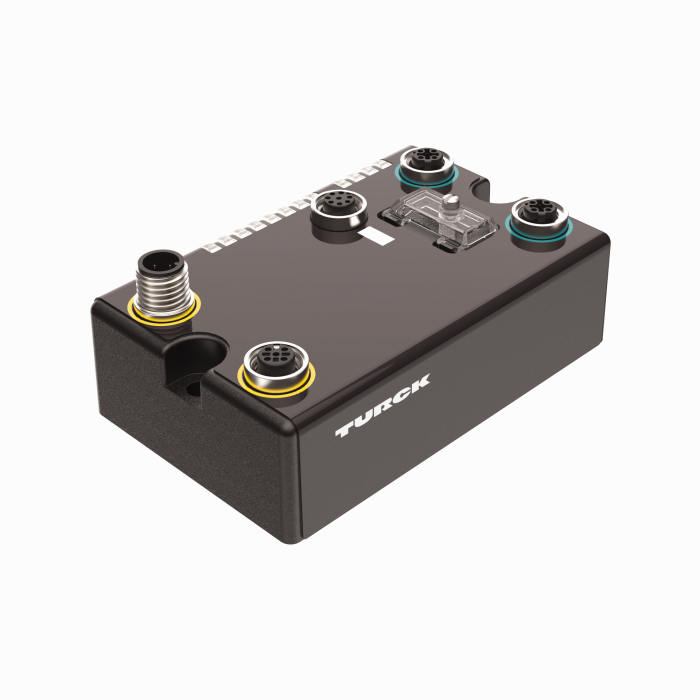

BL compact multiprotocol fieldbus station for Industrial Ethernet - SSI Interface
SKU: BLCEN-1M12MT-1SSI
I/O Module, Compact station · SSI · M12
$907.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
BL compact multiprotocol fieldbus station for Industrial Ethernet — SSI Interface
- On-machine Compact fieldbus I/O block
- EtherNet/IP, Modbus TCP, or PROFINET slave
- Integrated Ethernet Switch
- 10 Mbps / 100 Mbps supported
- Two 4-pole M12, D-coded, connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- Connection of SSI encoder
- Max transmission rate of 1 Mbps
The Turck BL compact multiprotocol fieldbus station for Industrial Ethernet - SSI Interface BLCEN-1M12MT-1SSI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101314472 |
| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Country of origin | DE |
| Weight | 486 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Signal type | SSI |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
