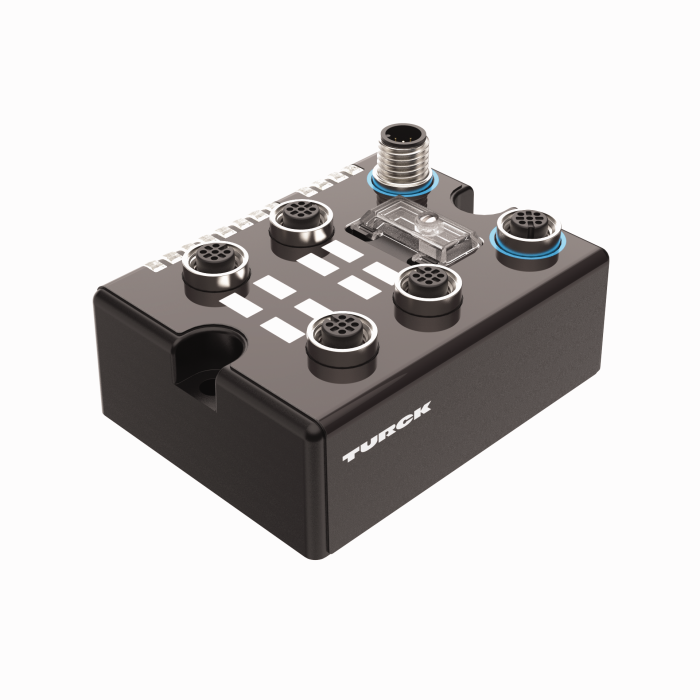

BL compact fieldbus station for DeviceNet - 2 Analog Inputs for Current or Voltage and 2 Analog Outputs for Voltage
SKU: BLCDN-4M12S-2AI2AO-VI
I/O Module, Compact station · Analog output, Analog input, Analog input/output · M12
$717.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
BL compact fieldbus station for DeviceNet — 2 Analog Inputs for Current or Voltage and 2 Analog Outputs for Voltage
- On-machine Compact fieldbus I/O block
- DeviceNet slave
- 125 / 250 / 500 kbps
- Two 5-pole M12 connectors for fieldbus connection
- 2 rotary switches for node address
- IP67, IP69K
- M12 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 2 analog inputs for current or voltage
- 0/4…20 mA or -10/0…+10 VDC (selectable per channel)
- 2 analog voltage outputs
- -10/0…+10 VDC
The Turck BL compact fieldbus station for DeviceNet - 2 Analog Inputs for Current or Voltage and 2 Analog Outputs for Voltage # BLCDN-4M12S-2AI2AO-VI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101264937 |
| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Country of origin | US |
| Weight | 373.8 g |
| Fieldbus Protocol | DeviceNet |
| Signal type | Analog output, Analog input, Analog input/output |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 125/250/500 kbps |
| Fieldbus connection technology | 2 × M12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
