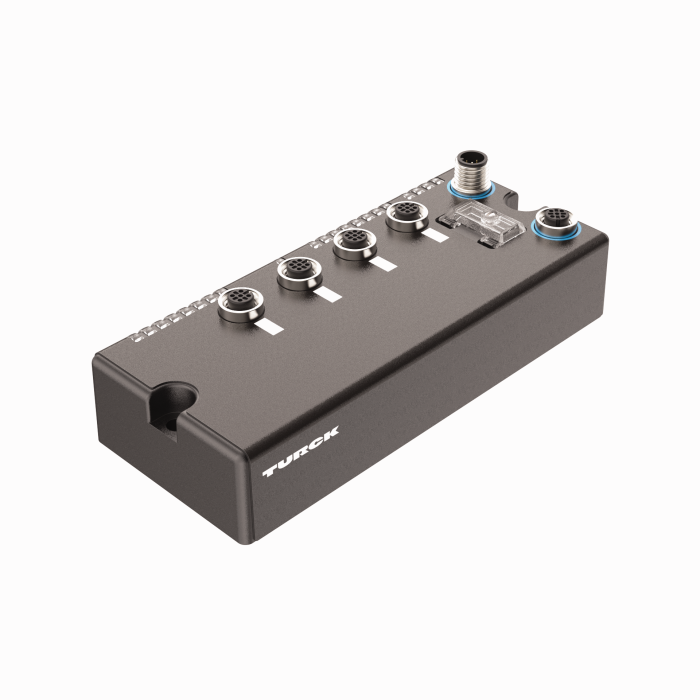

BL compact fieldbus station for DeviceNet — 4 Analog Inputs for Thermocouple Elements

On-machine Compact fieldbus I/O block
DeviceNet slave
125 / 250 / 500 kbps
Two 5-pole M12 connectors for fieldbus connection
2 rotary switches for node address
IP67, IP69K
M12 I/O connectors
LEDs indicating status and diagnostics
Electronics galvanically separated from the field level via optocouplers
4 analog inputs for RTDs
Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, 0…100Ω, 0…200Ω, 0…400Ω, or 0…1000Ω (selectable per channel)

The Turck BL compact fieldbus station for DeviceNet - 4 Analog Inputs for Thermocouple Elements # BLCDN-4M12L-2AI-PT-2AI-PT is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

EAN	4047101663822
eCl@ss-Code (V5.1.4)	27250313 -/- Communication interface, passive
Customs tariff number	8536908530
Weight	608.93 g
Fieldbus Protocol	DeviceNet
Signal type	Analog input, Temperature
Connection technology signal	M12
Device type	I/O Module, Compact station
Fieldbus transmission rate	125/250/500 kbps
Fieldbus connection technology	2 × M12
Ambient temperature	-40…+70 °C
Protection class	IP67/IP69K

BL compact fieldbus station for DeviceNet - 4 Analog Inputs for Thermocouple Elements
