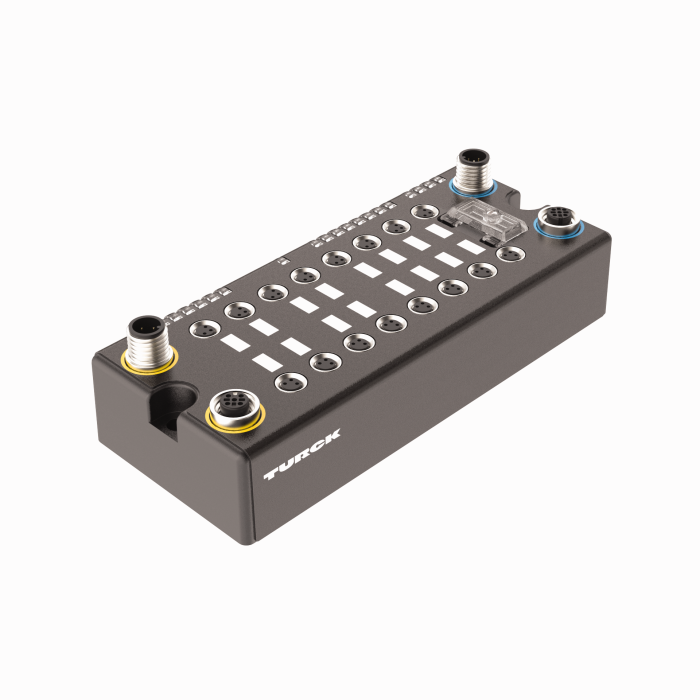

BL compact fieldbus station for DeviceNet - 16 Configurable Digital PNP Channels
SKU: BLCDN-16M8LT-8XSG-PD-8XSG-PD
I/O Module, Compact station · Digital output, Digital input/output, Digital input · M8
$1,045.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
BL compact fieldbus station for DeviceNet — 16 Configurable Digital PNP Channels
- On-machine Compact fieldbus I/O block
- DeviceNet slave
- 125 / 250 / 500 kbps
- Two 5-pole M12 connectors for fieldbus connection
- 2 rotary switches for node address
- IP67
- M8 I/O connectors
- LEDs indicating status and diagnostics
- Electronics galvanically separated from the field level via optocouplers
- 16 Configurable digital PNP channels, 24 VDC
- Max. 0.5A per channel
- Channel diagnostics
- Selection of filtering times (Input delay)
- Invertible inputs
The Turck BL compact fieldbus station for DeviceNet - 16 Configurable Digital PNP Channels # BLCDN-16M8LT-8XSG-PD-8XSG-PD is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Weight | 635.72 g |
| Fieldbus Protocol | DeviceNet |
| Signal type | Digital output, Digital input/output, Digital input |
| Connection technology signal | M8 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 125/250/500 kbps |
| Fieldbus connection technology | 2 × M12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
