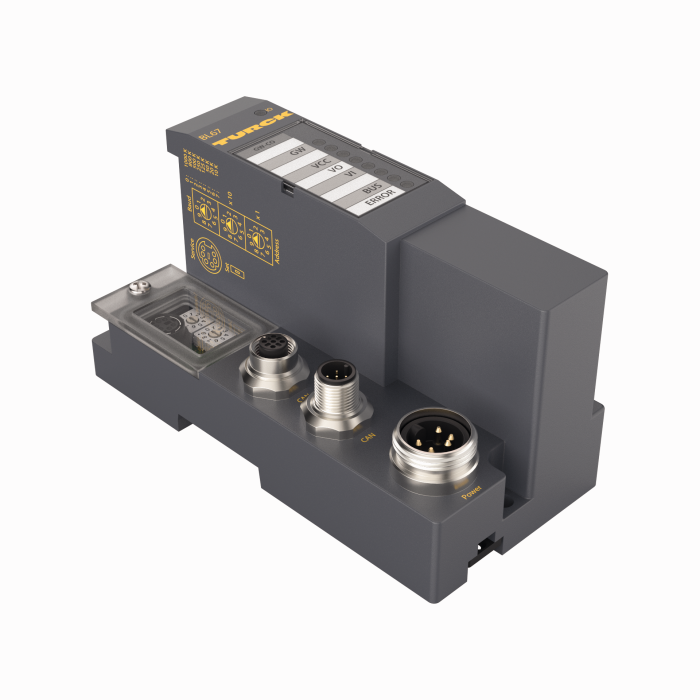

Gateway for BL67 I/O system - Interface for CANopen
SKU: BL67-GW-CO
Gateway · cULus
$592.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Gateway for BL67 I/O system — Interface for CANopen
- 3 decimal rotary coding switches
- Protection class IP67
- LEDs for display of supply voltage, group and bus errors
- Interface between the BL67 system and CANopen
- 1 Mbps
- Two 5-pin M12 connectors for fieldbus connection
- One male 7/8", 5-pin, for power supply
The Turck Gateway for BL67 I/O system - Interface for CANopen # BL67-GW-CO is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101109252 |
| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 373 g |
| Fieldbus Protocol | CANopen |
| Device type | Gateway |
| Fieldbus transmission rate | 10 kbps …1 Mbps |
| Fieldbus connection technology | 2 × M12, 5-pin |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
| Approvals | cULus |
