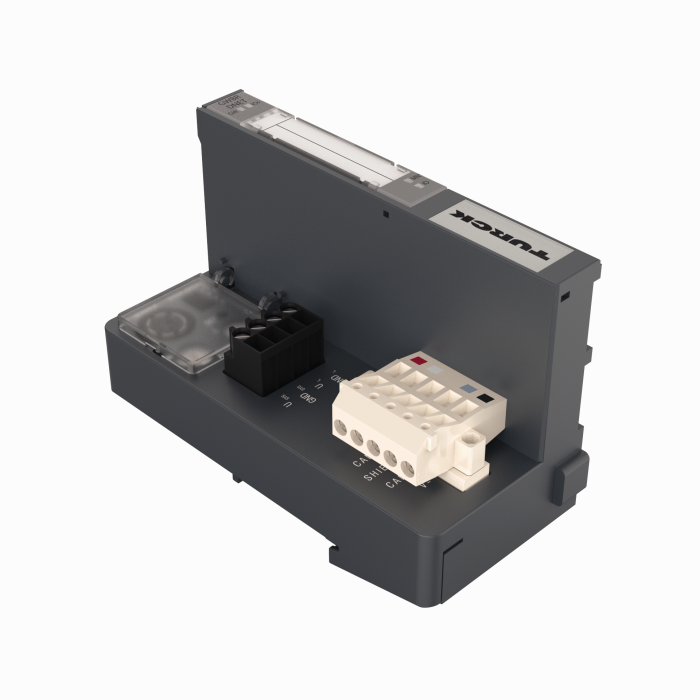

- Interface for DeviceNet
SKU: BL20-GWBR-DNET
Gateway · cULus
$466.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Interface for DeviceNet
- Rotary coding switch for adjustment of the node address
- Protection class IP20
- 2 x end brackets BL20-WEW35/2-SW
- 1 x end plate BL20-ABPL
- 1 x open style connector
- Integrated power supply
- LEDs for display of supply voltage, group and bus errors
- Gateway between the BL20 system and DeviceNet
- 125 / 250 / 500 kbps
- Connection to DeviceNet established via Open-Style connector
The Turck - Interface for DeviceNet # BL20-GWBR-DNET is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101108965 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 216 g |
| Fieldbus Protocol | DeviceNet |
| Device type | Gateway |
| Fieldbus transmission rate | 125/250/500 kbps |
| Fieldbus connection technology | Open style connector |
| Ambient temperature | 0…+55 °C |
| Protection class | IP20 |
| Approvals | cULus |
