- Multiprotocol Interface for Ethernet
SKU: BL20-E-GW-EN/ET
With Extended Temperature Range
$367.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

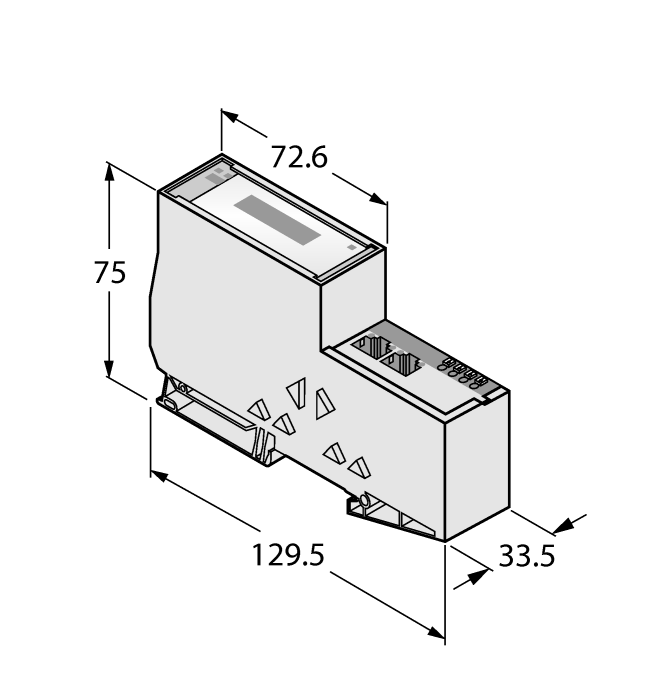

Multiprotocol Interface for Ethernet — With Extended Temperature Range
- DIP switch for adjustment of the node address
- Protection class IP20
- 2 x end brackets BL20-WEW35/2-SW
- 1 x end plate BL20-ABPL
- LEDs for display of supply voltage, group and bus errors
- Multiprotocol gateway between the BL20 system and the Ethernet protocols Modbus TCP, EtherNet/IP and PROFINET (from VN 03-00)
- The PROFINET protocol supports fast start-up (FSU)
- The EtherNet/IP protocol supports QuickConnect (QC)
- Integrated switch 10/100 Mbps
- Two RJ45 male for fieldbus connection
- Push-in clamps for connection of power supply
- Extended temperature range: -25 °C…+60 °C
- Circuit boards with conformal coating
The Turck - Multiprotocol Interface for Ethernet # BL20-E-GW-EN/ET is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101203608 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 163 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Device type | Gateway |
| Ambient temperature | -25…+60 °C |
| Protection class | IP20 |
