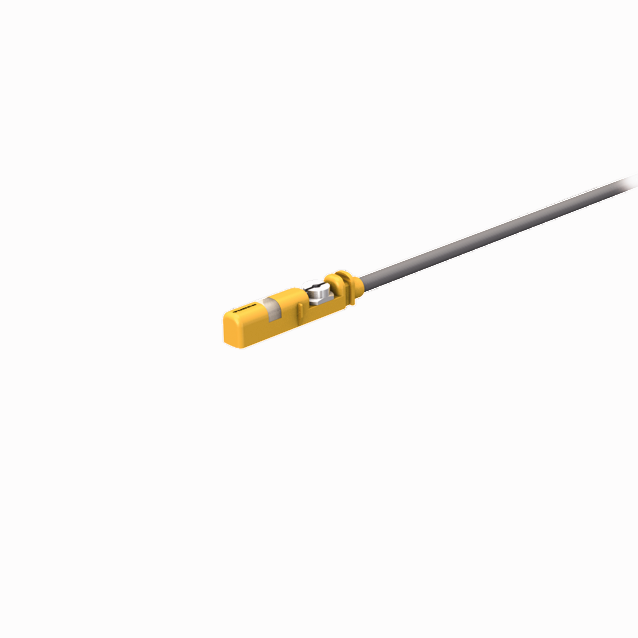

Magnetic Field Sensor - For Pneumatic Cylinders
SKU: BIM-UNT-RP6X-0.2-PSG3M
28 x 5 x 6 mm, UNT · NC contact, PNP · Cable with connector, M8 × 1 · 10…30 VDC
$118.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — For Pneumatic Cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylinder designs
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 10…30 VDC
- NC contact, PNP output
- Pigtail with male end, M8 x 1
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-UNT-RP6X-0.2-PSG3M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | CH |
| Weight | 10.89 g |
| Design | Rectangular |
| Construction size | 28 x 5 x 6 mm, UNT |
| Cylindrical design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, PNP |
| Electrical connection | Cable with connector, M8 × 1 |
| Cable length (L) | 0.20 m |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68 |
