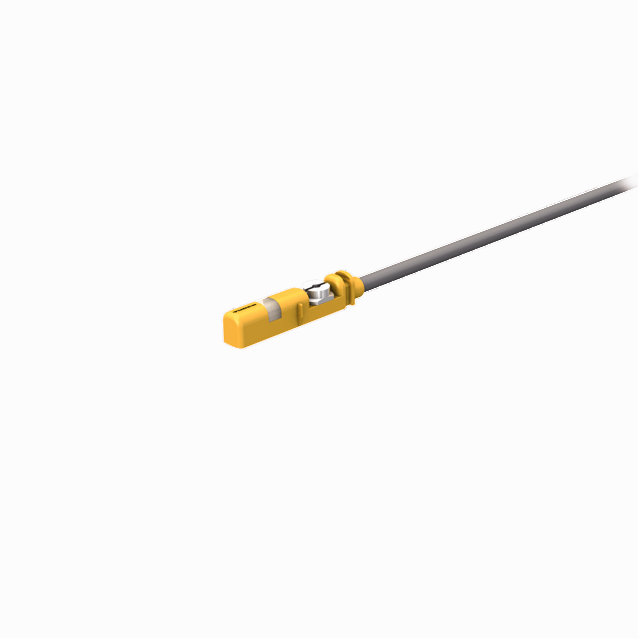

Magnetic Field Sensor - For Pneumatic Cylinders
SKU: BIM-UNT-0.5-UNT-2AP6X3-H1141
30 x 5 x 22 mm, UNT · NO contact, PNP · Connector, M12 × 1 · 10…30 VDC
$193.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — For Pneumatic Cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Tool for fine adjustment and stopper for direct mounting on the sensor
- Stable mounting
- Optimally suited for monitoring two switching points on a cylinder
- No Y-splitter required
- Magneto-resistive sensor
- 2x NO contacts, PNP output
- DC 4‐wire, 10…30 VDC
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-UNT-0.5-UNT-2AP6X3-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101195378 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | PL |
| Weight | 16.34 g |
| Design | Rectangular |
| Construction size | 30 x 5 x 22 mm, UNT |
| Cylindrical design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
