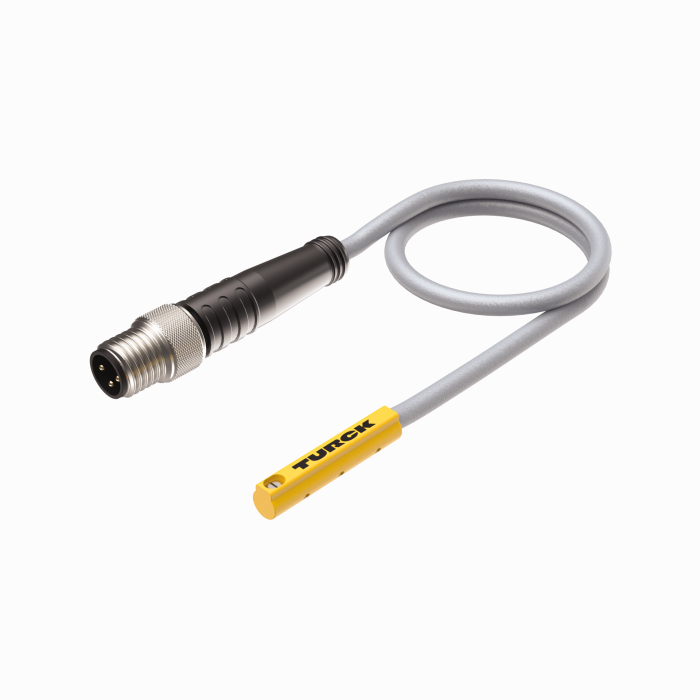

Magnetic Field Sensor - For Pneumatic Cylinders
SKU: BIM-UNC-AP6X-0.3-PSG3M
22 x 4 x 4.6 mm, UNC · NO contact, PNP · Cable with connector, M8 × 1 · 11…30 VDC
$139.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — For Pneumatic Cylinders
- For SMC C-groove cylinders without mounting accessories
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 11…30 VDC
- NO contact, PNP output
- Pigtail with M8 × 1 male connector
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-UNC-AP6X-0.3-PSG3M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101454109 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 10 g |
| Design | Rectangular |
| Construction size | 22 x 4 x 4.6 mm, UNC |
| Cylindrical design | C-groove cylinder |
| Operating voltage | 11…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable with connector, M8 × 1 |
| Cable length (L) | 0.30 m |
| Housing material | Plastic, PP-GF20 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
