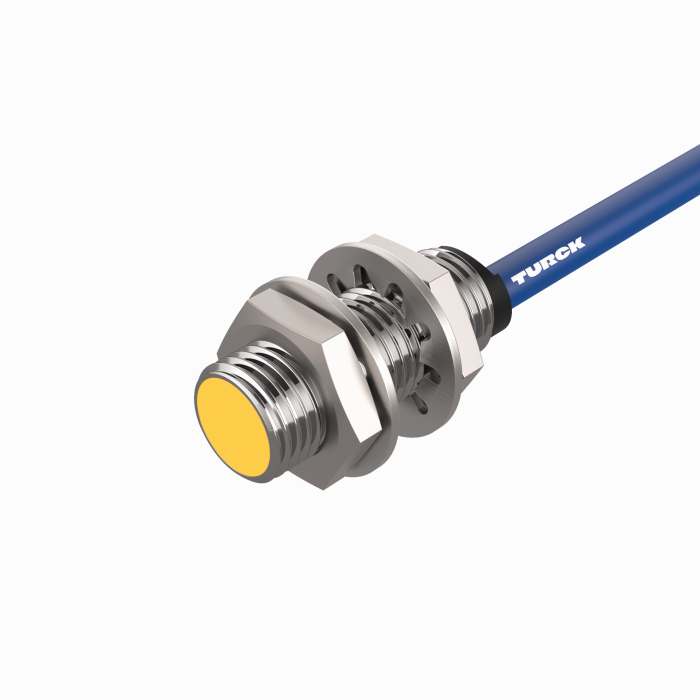

Magnetic Field Sensor - with extended temperature range
SKU: BIM-M12-Y0/S300
M12 x 1 · NAMUR · Cable · Nom. 8.2 VDC
$231.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — with extended temperature range
- Threaded barrel, M12 x 1
- Chrome-plated brass
- For temperatures up to 130°C
- Magnet-inductive proximity sensor
- Rated switching distance 90 mm with DMR31-15-5 magnet
- DC 2-wire, nom. 8.2 VDC
- Output acc. to EN 60947-5-6 (NAMUR)
- Cable connection
The Turck Magnetic Field Sensor - with extended temperature range # BIM-M12-Y0/S300 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101064506 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8543709100 |
| Country of origin | DE |
| Weight | 109 g |
| Design | Threaded barrel |
| Construction size | M12 x 1 |
| Rated switching distance | 90 mm |
| Operating voltage | Nom. 8.2 VDC |
| Output function | NAMUR |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | 0…+130 °C |
| Special features | Magnetic-inductive |
