Magnetic Field Sensor - For Pneumatic Cylinders
SKU: BIM-IKE-AN6X-H1141 W/KLI3
30 x 14.6 x 28 mm, IKE · NO contact, NPN · Connector, M12 × 1 · 10…30 VDC
$121.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — For Pneumatic Cylinders
- Rectangular, height 28 mm
- Metal, GD-Zn
- Magnetic-inductive sensor
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M12 x 1 connector
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-IKE-AN6X-H1141 W/KLI3 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101156508 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 70 g |
| Design | Rectangular |

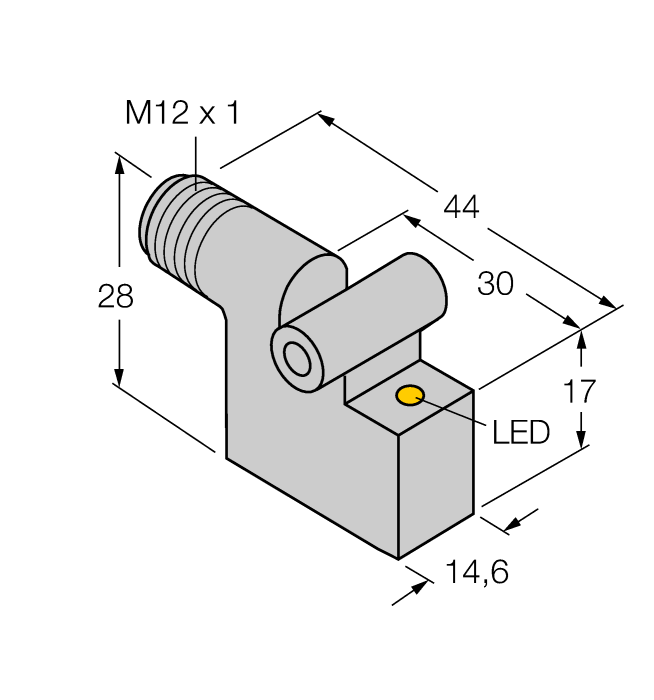

| Construction size | 30 x 14.6 x 28 mm, IKE |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, GD-Zn |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
