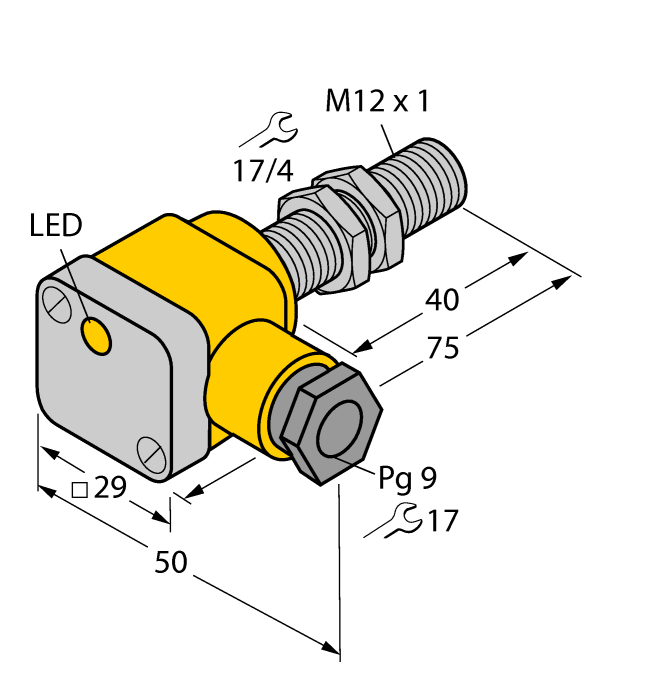

Magnetic Field Sensor - Magnetic-inductive Proximity Sensor
SKU: BIM-G12SK-AP4X/S235
M12 x 1 · NO contact, PNP · Terminal chamber · 10…65 VDC
$290.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — Magnetic-inductive Proximity Sensor
- Threaded barrel, M12 x 1
- Chrome-plated brass
- Rated operating distance 90 mm with DMR31-15-5 magnet
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Terminal chamber
The Turck Magnetic Field Sensor - Magnetic-inductive Proximity Sensor # BIM-G12SK-AP4X/S235 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101076837 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536908585 |
| Country of origin | DE |
| Weight | 65 g |
| Design | Threaded barrel |
| Construction size | M12 x 1 |
| Rated switching distance | 90 mm |
| Operating voltage | 10…65 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Terminal chamber |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Special features | Magnetic-inductive |
