Magnetic Field Sensor - For Pneumatic Cylinders
SKU: BIM-AKT-Y1X W/KLA1

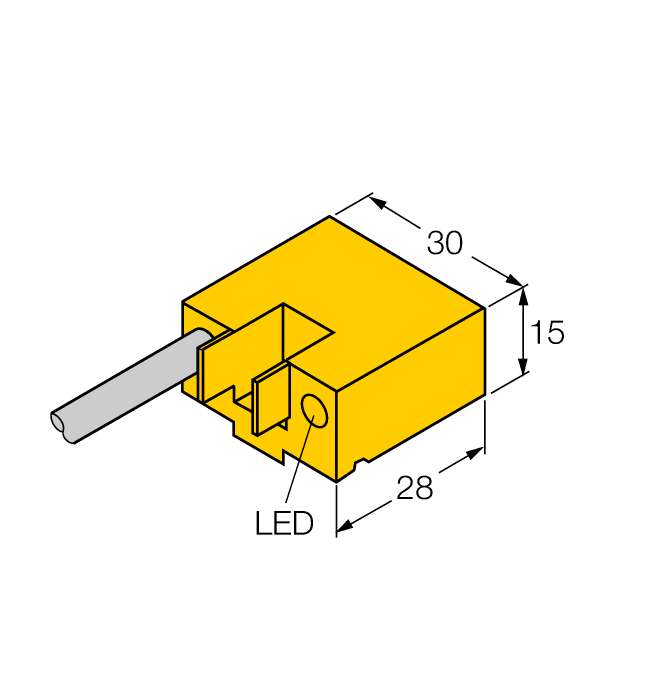

28 x 30 x 15 mm, AKT · NAMUR · Cable · Nom. 8.2 VDC
$138.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — For Pneumatic Cylinders
- Rectangular, height 15 mm
- Concentric active face
- Plastic, PA12‐GF30
- Magnetic-inductive sensor
- DC 2-wire, nom. 8.2 VDC
- Output acc. to EN 60947-5-6 (NAMUR)
- Cable connection
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 1 D, Ex Zone 20
- SIL 2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0
- SIL 3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
The Turck Magnetic Field Sensor - For Pneumatic Cylinders # BIM-AKT-Y1X W/KLA1 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101692877 |
| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 108.94 g |
| Design | Rectangular |
| Construction size | 28 x 30 x 15 mm, AKT |
| Cylindrical design | Profile cylinder |
| Operating voltage | Nom. 8.2 VDC |
| Output function | NAMUR |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PA12-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
