Magnetic Field Sensor - Magnetic-inductive Proximity Sensor
SKU: BIM-AKT-AP6X/S235 W/KLA1

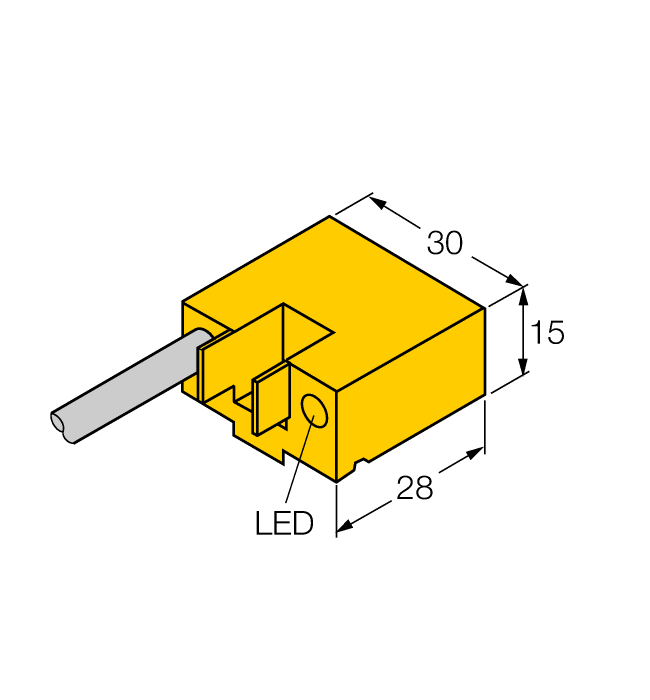

28 x 30 x 15 mm, AKT · NO contact, PNP · Cable · 10…30 VDC
$152.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetic Field Sensor — Magnetic-inductive Proximity Sensor
- Rectangular, height 15mm
- Concentric active face
- Plastic, PA12-GF30
- Increased sensitivity
- DC 3‐wire, 10…30 VDC
- NO contact, PNP output
- Cable connection
The Turck Magnetic Field Sensor - Magnetic-inductive Proximity Sensor # BIM-AKT-AP6X/S235 W/KLA1 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 114.84 g |
| Design | Rectangular |
| Construction size | 28 x 30 x 15 mm, AKT |
| Cylindrical design | Profile cylinder |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PA12-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
