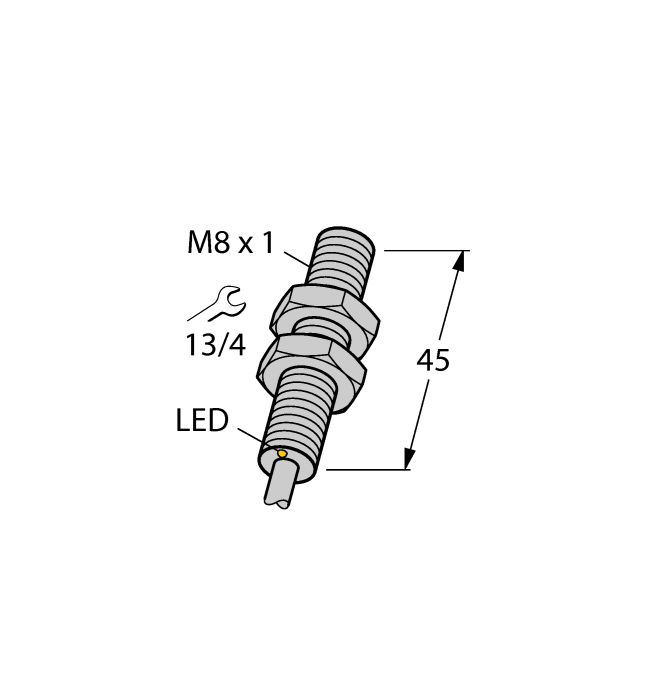

Inductive Sensor - Stainless Steel Front
SKU: BI3-EG08FE-RN6X
M8 x 1 · 3 mm · Flush · Cable
$215.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — Stainless Steel Front
- Threaded barrel, M8 x 1
- Stainless steel, 1.4305
- DC 3-wire, 10…30 VDC
- NC contact, NPN output
- Cable connection
The Turck Inductive Sensor - Stainless Steel Front # BI3-EG08FE-RN6X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101387728 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 45 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 3 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, NPN |
| Switching frequency | 1.0 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Stainless steel, 1.4305 (AISI 303) |
| Ambient temperature | -25…+85 °C |
| Protection class | IP67/IP68 |
| Special features | All-metal sensor, Pressure resistant |
