Inductive Sensor - With Extended Switching Distance (BI20U-CP40-AP6X2/S10)
Turck

Inductive Sensor - With Extended Switching Distance, 114 x 40 x 40 mm (CP40), 20 mm Switching Distance, Flush, 10…30 VDC, PNP NO Contact, Terminal Chamber

SKU: BI20U-CP40-AP6X2/S10

$182.00

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

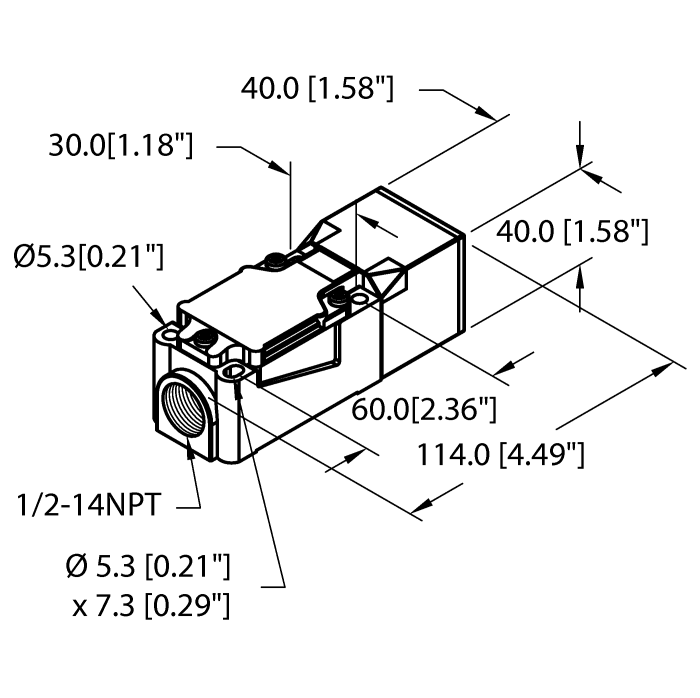

114 x 40 x 40 mm, CP40 · 20 mm · Flush · Terminal chamber

Inductive Sensor — With Extended Switching Distance

  • Rectangular, height 40 mm
  • Variable orientation of active face in 9 directions
  • Plastic, PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum visibility of operating-voltage display and switching state in any installation position
  • Factor 1 for all metals
  • Protection class IP68
  • Resistant to magnetic fields
  • Large coverage
  • High switching frequency
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • Terminal chamber

The Turck Inductive Sensor - With Extended Switching Distance, 114 x 40 x 40 mm (CP40), 20 mm Switching Distance, Flush, 10…30 VDC, PNP NO Contact, Terminal Chamber BI20U-CP40-AP6X2/S10 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
