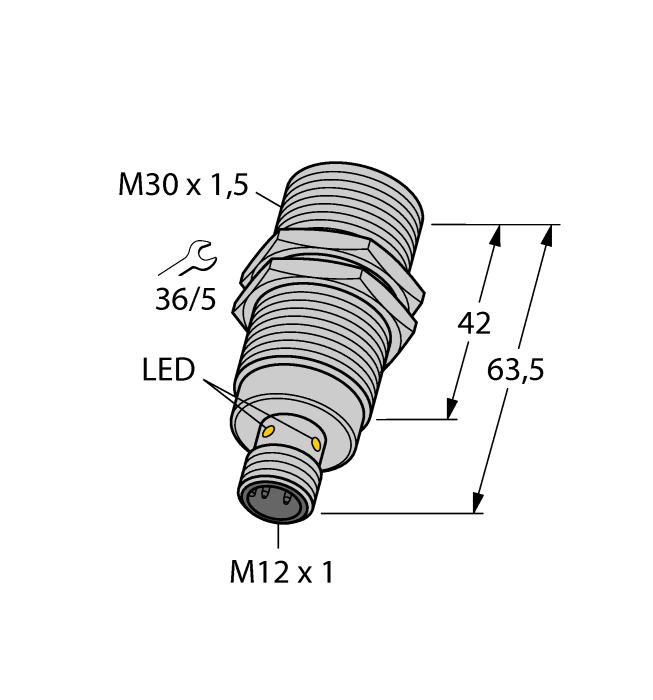

Inductive Sensor - Stainless Steel Front
SKU: BI20-EG30F-AN6X-H1141
M30 x 1.5 · 20 mm · Flush · Connector, M12 × 1
$227.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — Stainless Steel Front
- Threaded barrel, M30 x 1.5
- Stainless steel, 1.4305
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M12 x 1 male connector
The Turck Inductive Sensor - Stainless Steel Front # BI20-EG30F-AN6X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101268249 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 139 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 20 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, NPN |
| Switching frequency | 0.10 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4305 (AISI 303) |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
| Special features | All-metal sensor, Pressure resistant |
