Inductive Sensor
SKU: BI20-CA4080-VP4X2-H1141/S1009
80 x 40 x 40 mm, CA4080 · 20 mm · Flush · Connector, M12 × 1
$576.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor
- Rectangular, height 40 mm
- Sensor housing GD-ALSI 12
- Plastic, Duroplast
- DC 4-wire, 10…65 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
The Turck Inductive Sensor # BI20-CA4080-VP4X2-H1141/S1009 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 576.93 g |
| Design | Rectangular |

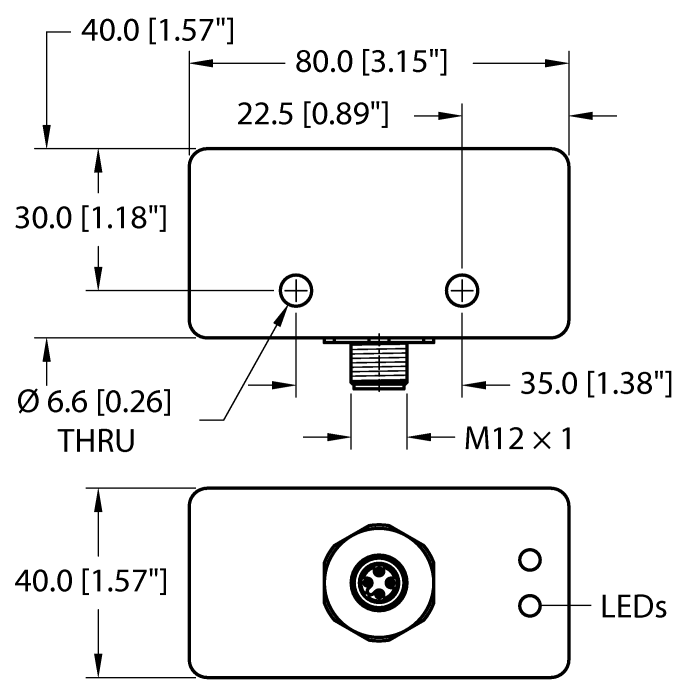

| Construction size | 80 x 40 x 40 mm, CA4080 |
| Rated switching distance | 20 mm |
| Mounting | Flush |
| Operating voltage | 10…65 VDC |
| Output function | Complementary contact, PNP |
| Switching frequency | 0.10 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, GD-AlSi 12 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
