Inductive Sensor
SKU: BI20-CA40130-ADZ30X2-B1131
130 x 40 x 40 mm, CA40130 · 20 mm · Flush · Connector, 7/8″
$804.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor
- Rectangular, height 40 mm
- Sensor housing GD-ALSI 12
- Plastic, Duroplast
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NO contact
- 7/8" male connector
The Turck Inductive Sensor # BI20-CA40130-ADZ30X2-B1131 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101019117 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 975 g |
| Design | Rectangular |

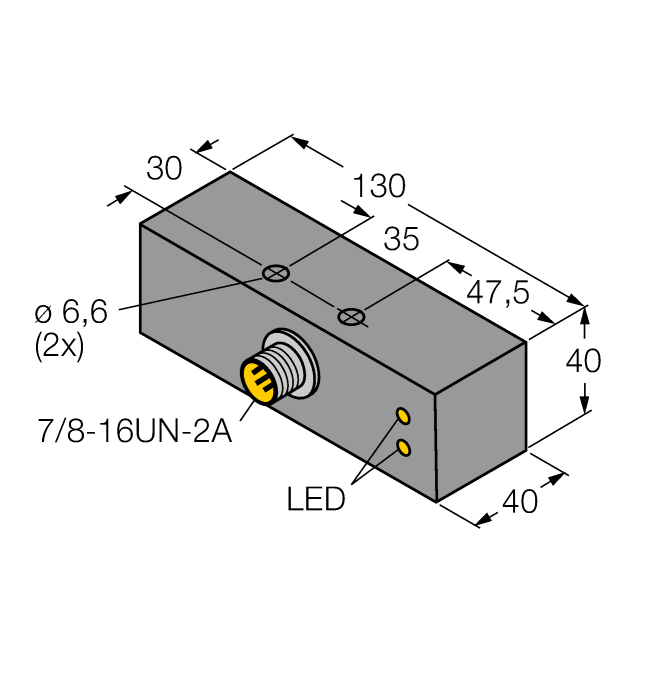

| Construction size | 130 x 40 x 40 mm, CA40130 |
| Rated switching distance | 20 mm |
| Mounting | Flush |
| Operating voltage | 20…250 VAC / 10…300 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.020 kHz |
| Electrical connection | Connector, 7/8″ |
| Housing material | Metal, GD-AlSi 12 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
