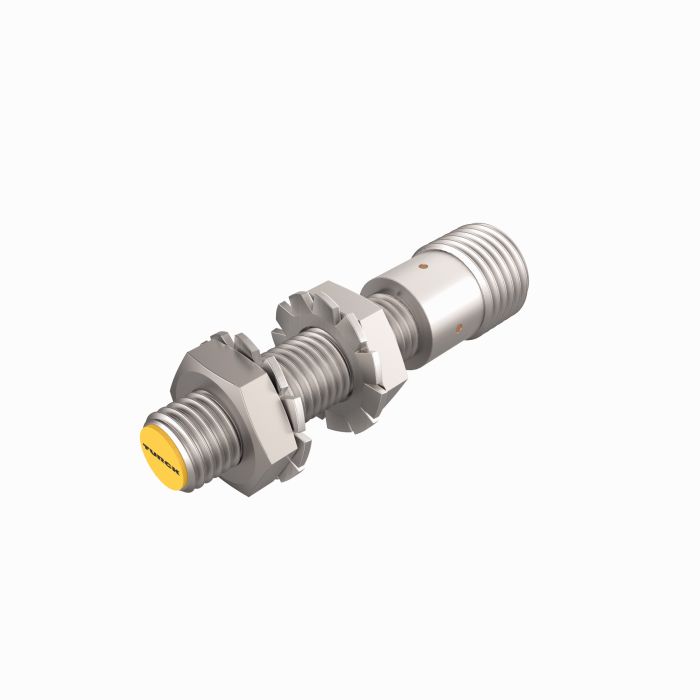

Inductive Sensor - With Weldguard coating
SKU: BI2-EG08K-AG41X-H1341/S1589
M8 x 1 · 2 mm · Flush · Connector, M12 × 1
$187.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Weldguard coating
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- DC 2-wire, 10…55 VDC
- Polarized version
- NO contact
- M12 x 1 male connector
The Turck Inductive Sensor - With Weldguard coating # BI2-EG08K-AG41X-H1341/S1589 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | US |
| Weight | 18.61 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 2 mm |
| Mounting | Flush |
| Operating voltage | 10…55 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.30 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | weldguard |
