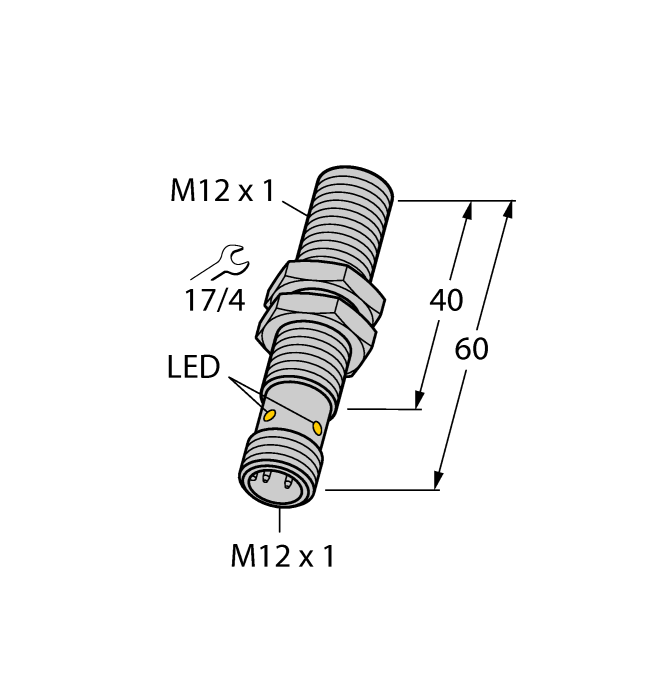

Inductive Sensor - With Selective Behaviour
SKU: BI2.5FE-EM12FE-AP6X-H1141
M12 x 1 · 2.5 mm · Flush · Connector, M12 × 1
$285.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Selective Behaviour
- Threaded barrel, M12 x 1
- Stainless steel
- Detects only ferromagnetic metals
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
The Turck Inductive Sensor - With Selective Behaviour # BI2.5FE-EM12FE-AP6X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101246209 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 29 g |
| Design | Threaded barrel |
| Construction size | M12 x 1 |
| Rated switching distance | 2.5 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.10 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4301 (AISI 304) |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Selective FE |
